Product Summary
The 2SD1757K is a power transistor.
Parametrics
2SD1757K absolute maximum ratings: (1)Collector-base voltage:30V; (2)Collector-emitter voltage:15V; (3)Emitter-base voltage:6.5V; (4)Collector current:0.5A; (5)Collector power dissipation:0.2W; (6)Junction temperature:150℃; (7)Storage temperature:-55℃ to +150℃.
Features
2SD1757K features: (1)Low VCE(sat). (Typ.8mV at IC/IB = 10/1mA) ; (2)Optimal for muting.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

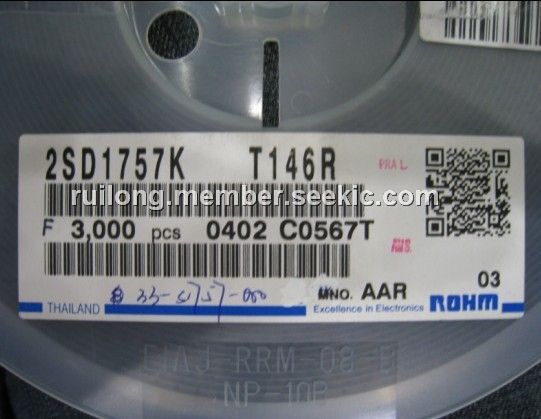

 2SD1757K |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
2SD1757KT146Q |
ROHM Semiconductor |
Transistors Bipolar (BJT) NPN 15V 0.5A |
Data Sheet |
|
|
||||||||||||
|
2SD1757KT146R |
ROHM Semiconductor |
Transistors Bipolar (BJT) NPN 15V 0.5A |
Data Sheet |
|
|
||||||||||||
|
2SD1757KT146S |
ROHM Semiconductor |
Transistors Bipolar (BJT) NPN 15V 0.5A |
Data Sheet |
|
|
||||||||||||
