Product Summary

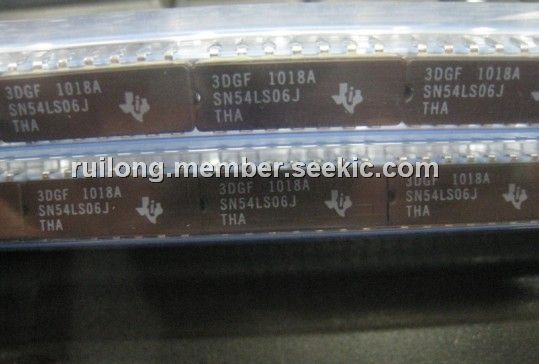

The SN54LS06J is a hex inverter buffer/driver. It features high-voltage open-collector outputs to interface with high-level circuits (such as MOS), or for driving high-current loads, and also is characterized for use as inverter buffers for driving TTL inputs. The SN54LS06J has a rated output voltage of 30V, the maximum sink current for it is 30mA.
Parametrics
SN54LS06J absolute maxing ratings: (1)Supply voltage, VCC: 7V; (2)Input voltage, VI: 7V; (3)Output voltage, VO: 30V; (4)Package thermal impedance, θJA: D package: 86℃/W; DB package: 96℃/W; N package: 80℃/W; NS package: 76℃/W; (5)Storage temperature range, Tstg : -65℃ to 150℃.
Features
SN54LS06J features: (1)Convert TTL Voltage Levels to MOS Levels; (2)High Sink-Current Capability; (3)Input Clamping Diodes Simplify System Design; (4)Open-Collector Driver for Indicator Lamps and Relays; (5)Inputs Fully Compatible With Most TTL Circuits.
Diagrams
 |
