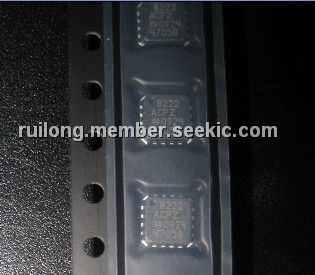

Product Summary

The AD8222ACPZ is a dual-channel, high performance instrumentation amplifier that requires only one external resistor per amplifier to set gains of 1 to 10,000. The AD8222ACPZ is the first dual-instrumentation amplifier in the small 4 mm * 4mm LFCSP. It requires the same board area as a typical single instrumentation amplifier. The smaller package allows a 2× increase in channel density and a lower cost per channel, all with no compromise in performance. The AD8222ACPZ can also be configured as a single-channel, differential output instrumentation amplifier. The applications of the AD8222ACPZ are Multichannel data acquisition for ECG and medical instrumentation, Industrial process controls, Wheatstone bridge sensors, Differential drives for High resolution input ADCs and Remote sensors.

Parametrics

AD8222ACPZ absolute maximum ratings: (1)Supply Voltage:±18 V ; (2)Output Short-Circuit Current Duration:Indefinite ; (3)Input Voltage (Common Mode):±VS ; (4)Differential Input Voltage:±VS ; (5)Storage Temperature Range:-65℃ to +130℃; (6)Operational Temperature Range:-40℃ to +125℃; (7)Package Glass Transition Temperature (TG):130℃ ; (8)ESD: Human Body Model:1 kV, Charge Device Model:1 kV.

Features

AD8222ACPZ features: (1)Two channels in small 4 mm * 4 mm LFCSP ; (2)Gain set with 1 resistor per amplifier (G = 1 to 10,000) ; (3)Low noise: 8 nV/√Hz at 1 kHz, 0.25μV p-p (0.1 Hz to 10 Hz) ; (4)High accuracy dc performance (B grade):60μV maximum input offset voltage, 0.3μV/℃ maximum input offset drift, 1.0 nA maximum input bias current, 126 dB minimum CMRR (G = 100) ; (5)Excellent ac performance:140 kHz bandwidth (G = 100), 13μs settling time to 0.001% ; (6)Differential output option (single channel): Fully specified, Adjustable common-mode output ; (7)Supply range: ±2.3V to ±18V.

Diagrams

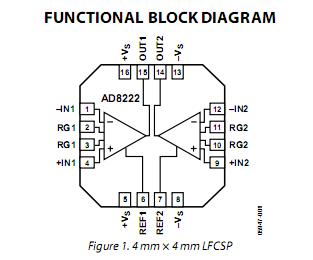

AD8222ACPZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8222ACPZ-R7
AD8222ACPZ-R7

IC AMP INST DUAL PREC LN 16LFCSP
Data Sheet
0-1: $5.06
1-10: $4.55
10-25: $4.14
25-100: $3.74
100-250: $3.43
250-500: $3.14
AD8222ACPZ-RL
AD8222ACPZ-RL

IC AMP INST DUAL PREC LN 16LFCSP
Data Sheet
0-5000: $2.61
AD8222ACPZ-WP
AD8222ACPZ-WP

IC AMP INST DUAL PREC LN 16LFCSP
Data Sheet
0-64: $4.20
