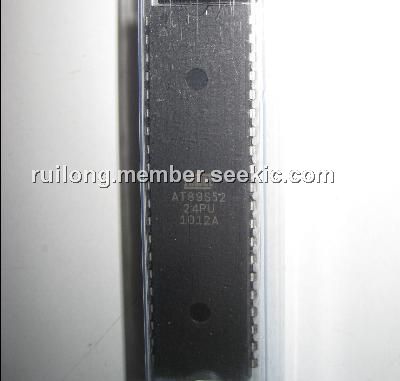

AT89S52-24PU

high-performance CMOS, 8-bit microcontroller, in-system programmable Flash memory

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.08~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.08~1.20

PartNumber:: AT89S52-24PU

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Berry's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-24

From Other Seller

Part Number:AT89S52-24PU
US $1.08 - 1.20
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT89S52-24PU is a low-power, high-performance CMOS 8-bit microcontroller with 8K bytes of in-system programmable Flash memory. The device is manufactured using Atmel is high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pinout. The on-chip Flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer. By combining a versatile 8-bit CPU with in-system programmable Flash on a monolithic chip, the Atmel AT89S52 is a powerful microcontroller which provides a highly-flexible and cost-effective solution to many embedded control applications.

Parametrics

Absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.6V; (5)DC Output Current: 15.0 mA.

Features

Features: (1)Compatible with MCS-51 Products; (2)8K Bytes of In-System Programmable (ISP) Flash Memory: Endurance: 1000 Write/Erase Cycles; (3)4.0V to 5.5V Operating Range; (4)Fully Static Operation: 0 Hz to 33 MHz; (5)Three-level Program Memory Lock; (6)256 x 8-bit Internal RAM; (7)32 Programmable I/O Lines; (8)Three 16-bit Timer/Counters; (9)Eight Interrupt Sources; (10)Full Duplex UART Serial Channel; (11)Low-power Idle and Power-down Modes; (12)Interrupt Recovery from Power-down Mode; (13)Watchdog Timer; (14)Dual Data Pointer; (15)Power-off Flag; (16)Fast Programming Time; (17)Flexible ISP Programming (Byte and Page Mode); (18)Green (Pb/Halide-free) Packaging Option.
