Product Summary
The 74HC595BQ is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HC595BQ is an 8-stage serial shift register with a storage register and 3-state outputs. The shift register and storage register have separate clocks.
Parametrics
Absolute maximum ratings: (1)supply voltage: -0.5 +7.0 V; (2)input diode current: ±20 mA at VI < -0.5 V to VI > VCC + 0.5 V; (3)output diode current: ±20 mA at VO < -0.5 V to VO > VCC + 0.5 V; (4)output source or sink current VO = -0.5 V to VCC + 0.5 V: ±25 mA at Q7’ standard output, ±35 mA at Qn bus driver outputs; (5)VCC or GND current: ±70 mA; (6)storage temperature: -65 +150 ℃; (7)power dissipation: 500 mW at Tamb = -40 to +125 ℃.
Features
Features: (1)8-bit serial input; (2)8-bit serial or parallel output; (3)Storage register with 3-state outputs; (4)Shift register with direct clear; (5)100 MHz (typical) shift out frequency; (6)ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V, MM EIA/JESD22-A115-A exceeds 200 V.

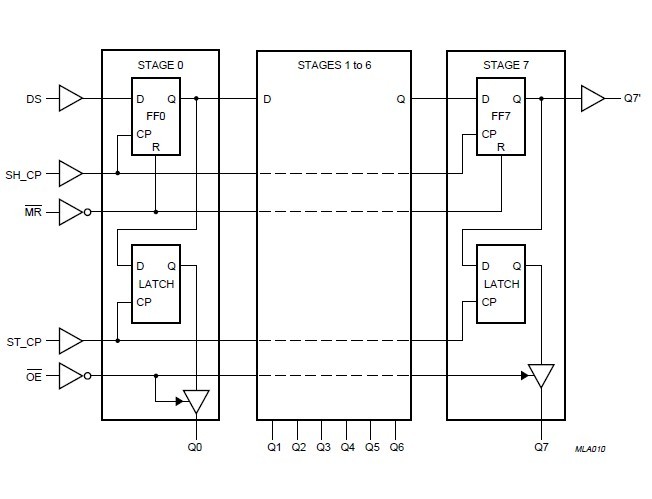

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() 74HC595BQ,115 |
![]() NXP Semiconductors |
![]() Counter Shift Registers 8-BIT SHIFT REGISTER |
![]() Data Sheet |
![]()
|
|
||||||||||||
