MAX1818EUT33

low-dropout linear regulator, SOT163, +2.5V to +5.5V, 500mA, Output Current Limit

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.30~1.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.30~1.40

PartNumber:: MAX1818EUT33

Brand:: Maxim Integrated Products - Maxim | Pack: SOT | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Berry's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-06

From Other Seller

Part Number:MAX1818EUT33
US $1.30 - 1.40
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

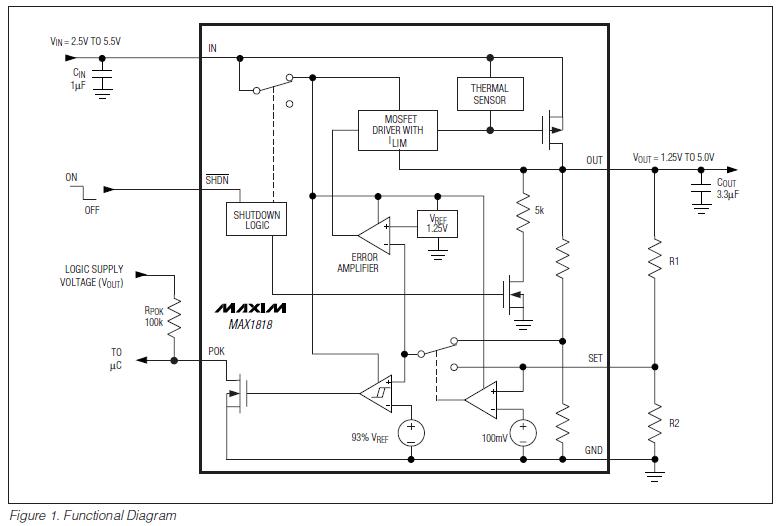

The MAX1818EUT33 is a low-dropout linear regulator. The MAX1818EUT33 operates from a +2.5V to +5.5V supply and delivers a guaranteed 500mA load current with low 120mV dropout. The high-accuracy (±1%) output voltage is preset at an internally trimmed voltage or can be adjusted from 1.25V to 5.0V with an external resistive divider. An internal PMOS pass transistor allows the low 125μA supply current to remain independent of load, making the MAX1818EUT33 ideal for portable battery-operated equipment such as personal digital assistants (PDAs), cellular phones, cordless phones, base stations, and notebook computers. Other features include an active-low open-drain reset output that indicates when the output is out of regulation, a 0.1μA shutdown, short-circuit protection, and thermal shutdown protection. The MAX1818EUT33 is available in a miniature 800mW 6-pin SOT23 package.

Parametrics

MAX1818EUT33 absolute maximum ratings: (1)IN, SHDN, POK, SET to GND: -0.3V to +6V; (2)OUT to GND: -0.3V to (VIN + 0.3V); (3)Output Short-Circuit Duration: 1min; (4)Continuous Power Dissipation (TA = +70℃): 800mW; (5)Operating Temperature Range: -40 to +85℃; (6)Junction Temperature: +150℃; (7)Storage Temperature Range: -65 to +150℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

MAX1818EUT33 features: (1)Guaranteed 500mA Output Current; (2)Low 120mV Dropout at 500mA; (3)±1% Output Voltage Accuracy: Preset at 1.5V, 1.8V, 2.0V, 2.5V, 3.3V, 5V; Adjustable from 1.25V to 5.0V; (4)Power OK Output; (5)Low 125μA Ground Current; (6)0.1μA Shutdown Current; (7)Thermal Overload Protection; (8)Output Current Limit; (9)Tiny 800mW 6-Pin SOT23 Package.
