Product Summary

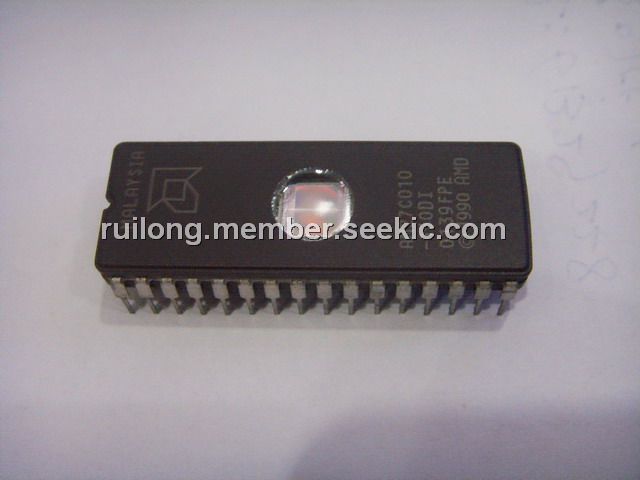

The AM27C010-150DI is a 1 Megabit, ultraviolet erasable programmable read-only memory. The AM27C010-150DI is organized as 128K words by 8 bits per word, operates from a single +5 V supply, has a static standby mode, and features fast single address location programming. The AM27C010-150DI is available in windowed ceramic DIP packages, as well as plastic one time programmable (OTP) PDIP and PLCC packages.
Parametrics
AM27C010-150DI absolute maximum ratings: (1)Storage Temperature: OTP Products: –65℃ to +125℃, All Other Products: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to VSS All pins except A9, VPP, VCC: –0.6 V to VCC + 0.6 V; (4)A9 and VPP: –0.6 V to 13.5 V; (5)VCC: –0.6 V to 7.0 V.
Features
AM27C010-150DI features: (1)Fast access time: Speed options as fast as 45 ns; (2)Low power consumption: 20 μA typical CMOS standby current; (3)JEDEC-approved pinout; (4)Single +5 V power supply; (5)±10% power supply tolerance standard; (6)100% Flashrite. programming: Typical programming time of 16 seconds; (7)Latch-up protected to 100 mA from –1 V to VCC + 1 V; (8)High noise immunity; (9)Versatile features for simple interfacing: Both CMOS and TTL input/output compatibility, Two line control functions; (10)Standard 28-pin DIP, PDIP, and 32-pin PLCC packages.

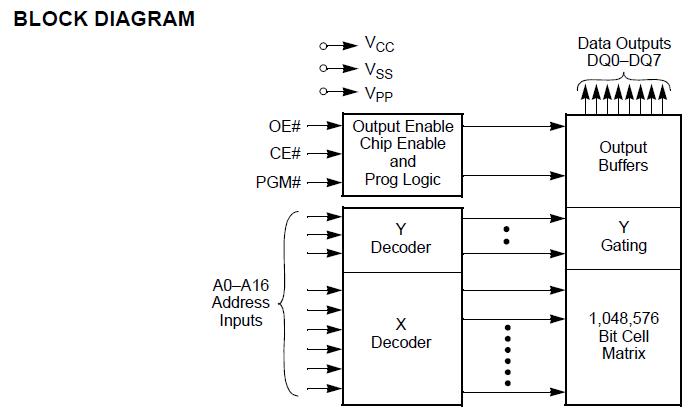

Diagrams
 |
