Product Summary

The STM8S105K4T6C access line 8-bit microcontroller offers from 16 to 32 Kbytes Flash program memory, plus integrated true data EEPROM. The STM8S105K4T6C referred to as medium-density devices in the STM8S microcontroller family reference manual.

Parametrics

STM8S105K4T6C maximum ratings: (1)VDDx - VSS Supply voltage (including VDDA and VDDIO): -0.3 6.5 V; (2)VIN Input voltage on true open drain pins VSS - 0.3: 6.5V; (3)Input voltage on any other pin(2) VSS - 0.3 VDD + 0.3V; (4)|VSSx - VSS| Variations between all the different ground pins: 50 mV; (5)|VDDx -VDD| Variations between different power pins: 50 mV.

Features

STM8S105K4T6C features: (1)Up to 38 I/Os on a 48-pin package including 16 high sink outputs; (2)Highly robust I/O design, immune against current injection; (3)Clock security system with clock monitor; (4)16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline; (5)Extended instruction set; (6)Nested interrupt controller with 32 interrupts; (7)Up to 37 external interrupts on 6 vectors; (8)2x 16-bit general purpose timers, with 2+3 CAPCOM channels (IC, OC or PWM); (9)Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization.

Diagrams

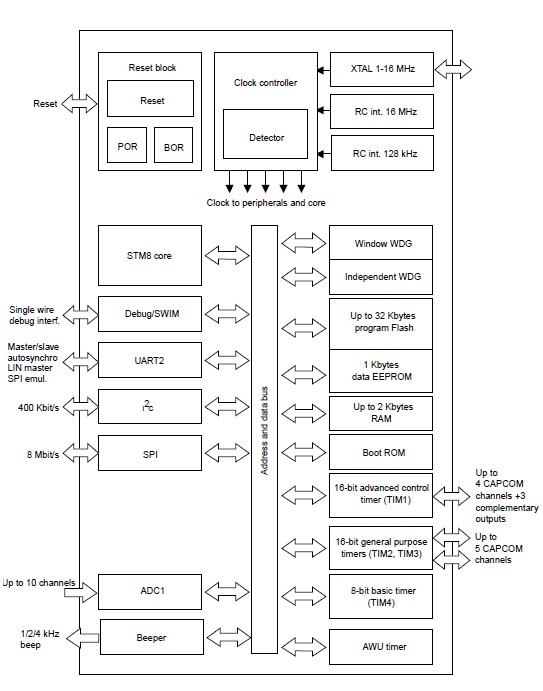

STM8S105K4T6C Block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
STM8S105K4T6C
STM8S105K4T6C

STMicroelectronics

8-bit Microcontrollers (MCU) Access Line 16 MHz 8-bit MCU 32 Kbyt

Data Sheet

0-870: $0.68
870-1000: $0.57
1000-2000: $0.53
2000-5000: $0.51
STM8S105K4T6CTR
STM8S105K4T6CTR

STMicroelectronics

8-bit Microcontrollers (MCU) Access line MCU 32Kbyt 16 MHz

Data Sheet

0-1660: $0.57
1660-2000: $0.53
2000-2400: $0.53
