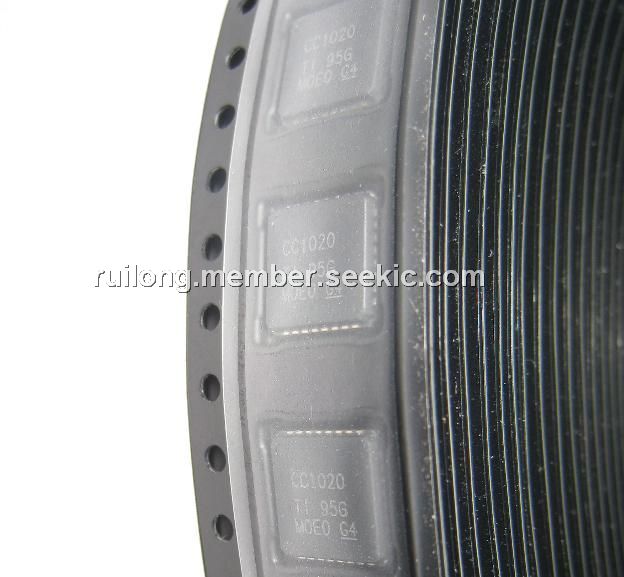

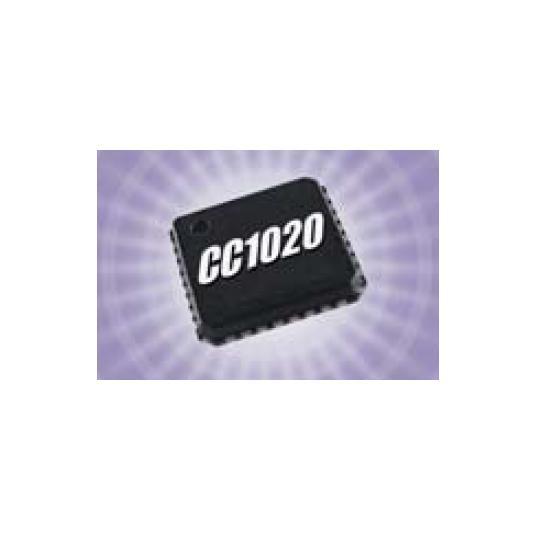

CC1020RUZR

Product Summary

The CC1020RUZR is a single chip low power RF transceiver for narrowband systems. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 402, 424, 426, 429, 433, 447, 449, 469, 868 and 915 MHz, but can easily be programmed for multi-channel operation at other frequencies in the 402 -470 and 804 - 940 MHz range. The CC1020RUZR is especially suited for narrowband systems with channel spacings of 12.5 or 25 kHz complying with ARIB STD T-67 and EN 300 220. The CC1020RUZR main operating parameters can be programmed via a serial bus, thus making CC1020RUZR a very flexible and easy to use transceiver. The applications of the CC1020RUZR are: Narrowband low power UHF wireless data transmitters and receivers with channel spacings as low as 12.5 and 25 kHz; 402 / 424 / 426 / 429 / 433 / 447 / 449 / 469 / 868 and 915 MHz ISM/SRD band systems; AMR-Automatic Meter Reading; Wireless alarm and security systems; Home automation; Low power telemetry.

Parametrics

CC1020RUZR absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to 5.0 V All supply pins must have the; (2)same voltage Voltage on any pin: -0.3 to VDD+0.3, max 5.0 V; (3)Input RF level: 10 dBm; (4)Storage temperature range: -50 to 150 ℃; (5)Package body temperature: 260 ℃ Norm: IPC/JEDEC J-STD-020C 1; (6)Humidity non-condensing: 5 to 85 %; (7)ESD: ±1kV All pads except RF; (8)ESDHuman Body Model: ±0.4kV RF Pads.

Features

CC1020RUZR features: (1)True single chip UHF RF transceiver; (2)Frequency range 402 MHz - 470 MHz and 804 MHz - 940 MHz; (3)High sensitivity (up to 18 dBm for a 12.5 kHz channel); (4)Programmable output power; (5)Low current consumption (RX: 19.9 mA); (6)Low supply voltage (2.3 V to 3.6 V); (7)No external IF filter needed; (8)Low-IF receiver; (9)Very few external components required; (10)Small size (QFN 32 package); (11)Pb-free package; (12)Digital RSSI and carrier sense indicator Data rate up to 153.6 kBaud; (13)OOK, FSK and GFSK data modulation; (14)Integrated bit synchronizer; (15)Image rejection mixer; (16)Programmable frequency and AFC make crystal temperature drift compensation possible without TCXO; (17)Suitable for frequency hopping systems; (18)Suited for systems targeting compliance with EN 300 220, FCC CFR47 part 15 and ARIB STD T-67; (19)Development kit available.

Diagrams
