Product Summary

The MC908JL3ECPE is a member of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller units (MCUs). The M68HC08 Family is based on the customer-specified integrated circuit (CSIC) design strategy. All MCUs in the family use the enhanced M68HC08 central processor unit (CPU08) and are available with a variety of modules, memory sizes and types, and package types.

Parametrics

Absolute maximum ratings: (1)Supply voltage, VDD: –0.3 to +6.0 V; (2)Input voltage, VIN VSS:–0.3 to VDD +0.3 V; (3)Mode entry voltage, IRQ1 pin, VDD+VHI: VSS–0.3 to +8.5 V; (4)Maximum current per pin excluding VDD and VSS, I: ±25 mA; (5)Storage temperature, TSTG: –55 to +150 ℃ ; (6)Maximum current out of VSS, IMVSS: 100 mA; (7)Maximum current into VDD, IMVDD: 100 mA.

Features

Features: (1)EMC enhanced version of MC68H(R)C908JL3/JK3/JK1; (2)High-performance M68HC08 architecture; (3)Fully upward-compatible object code with M6805, M146805, and M68HC05 Families; (4)Low-power design; fully static with stop and wait modes; (5)Maximum internal bus frequency: 8-MHz at 5V operating voltage; 4-MHz at 3V operating voltage; (6)128 bytes of on-chip RAM; (7)2-channel, 16-bit timer interface module (TIM); (8)12-channel, 8-bit analog-to-digital converter (ADC); (9)23 general purpose I/O ports; (10)Master reset pin with internal pull-up and power-on reset; (11)IRQ1 with schmitt-trigger input and programmable pull-up; (12)28-pin PDIP, 28-pin SOIC, and 48-pin LQFP packages.

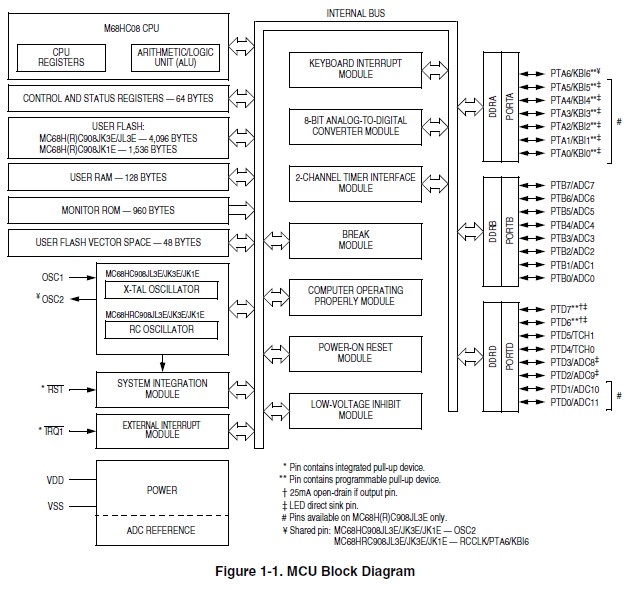

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

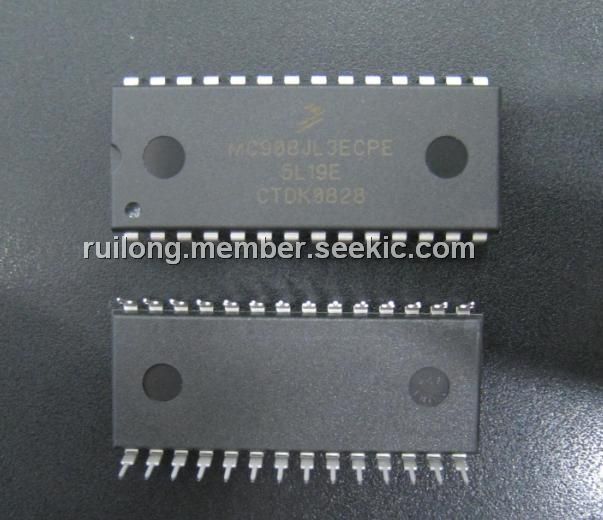

MC908JL3ECPE
MC908JL3ECPE
Freescale Semiconductor
8-bit Microcontrollers (MCU) MCU 128RAM 4K FLASH A/D
Data Sheet
0-1: $2.33
1-25: $2.09
25-100: $1.72
100-500: $1.54
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC908AB32CFUE
MC908AB32CFUE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 32K FLASH & 512 EE
Data Sheet
0-46: $6.60
46-100: $5.53
100-500: $5.17
500-1000: $4.75
MC908AB32CFUER
MC908AB32CFUER
Freescale Semiconductor
8-bit Microcontrollers (MCU) 32K FLASH & 512 EE
Data Sheet
0-750: $5.30
MC908AB32MFUE
MC908AB32MFUE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 32K FLASH & 512 EE
Data Sheet
0-1: $7.85
1-25: $7.25
25-100: $6.08
100-500: $5.69
MC908AP16ACBE
MC908AP16ACBE
Freescale Semiconductor
8-bit Microcontrollers (MCU) MCU 16K FLSH HS OSC
Data Sheet
0-1: $3.71
1-25: $3.38
25-100: $2.81
100-500: $2.56
MC908AP16ACFAE
MC908AP16ACFAE
Freescale Semiconductor
8-bit Microcontrollers (MCU) MCU 16K FLSH HS OSC
Data Sheet
0-150: $2.81
150-500: $2.56
500-1000: $2.23
1000-2000: $2.15
MC908AB32VFUE
MC908AB32VFUE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 8 BIT MCU 32K FLASH 512E
Data Sheet
Negotiable
