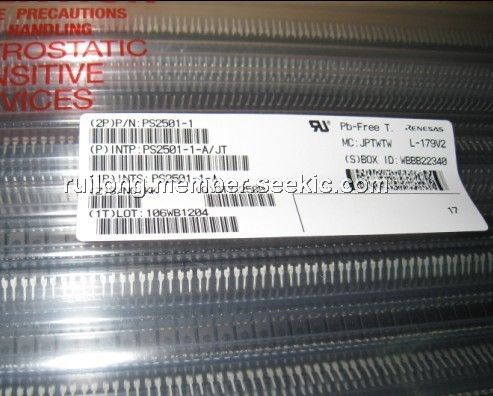

PS2501-1-A

high isolation voltage, single transistor type, multi photocoupler, DIP4, High collector, High isolation voltage

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.09~0.15 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.09~0.15

PartNumber:: PS2501-1-A

Brand:: Renesas Technology Corp - Renesas | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Berry's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-11

From Other Seller

Part Number:PS2501-1-A
US $0.09 - 0.15
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PS2501-1-A is a optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor. The PS2501-1-A is in a plastic DIP is lead bending type (Gull-wing) for surface mount. The applications of the PS2501-1-A are: Power supply; Telephone/FAX; FA/OA equipment; Programmable logic controller.

Parametrics

PS2501-1-A absolute maximum ratings: (1)Reverse Voltage VR: 6 V; (2)Forward Current (DC) IF: 80 mA; (3)Power Dissipation Deratin ΔPD/℃: 1.5 mW/℃; (4)Power Dissipation PD: 150 mW/ch; (5)Peak Forward Current IFP: 1 A; (6)Collector to Emitter Voltage VCEO: 80V; (7)Emitter to Collector Voltage VECO: 7 V; (8)Collector Current IC: 50 mA/ch; (9)Isolation Voltage BV: 5 000 Vr.m.s.; (10)Operating Ambient Temperature TA: -55 to +100 ℃; (11)Storage Temperature Tstg: -55 to +150 ℃.

Features

PS2501-1-A features: (1)High isolation voltage (BV = 5 000 Vr.m.s.); (2)High collector to emitter voltage (VCEO = 80 V); (3)High-speed switching (tr = 3 μs TYP., tf = 5 μs TYP.); (4)Ordering number of tape product; (5)Safety standards.
