Product Summary

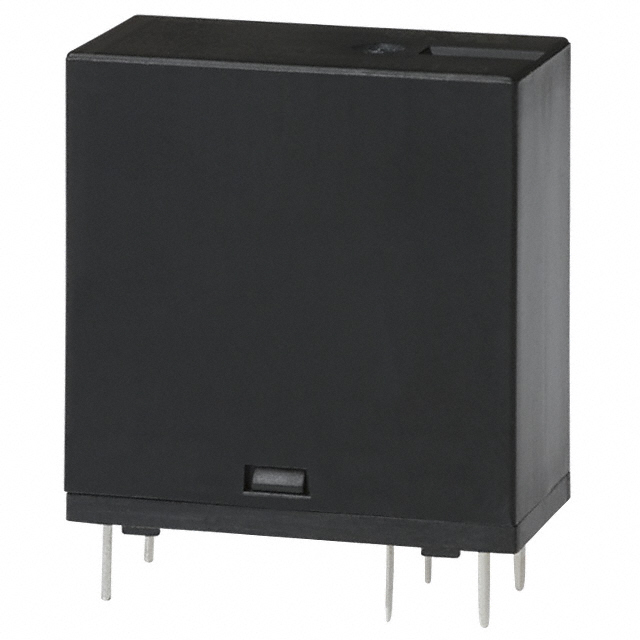

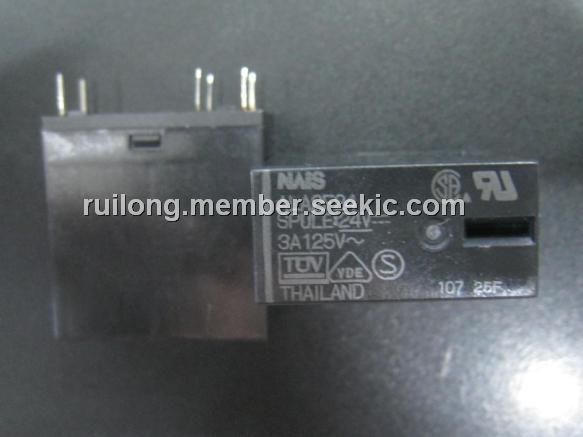

The ALA2F24 is a 2 form A slim power relay.
Parametrics
ALA2F24 absolute maximum ratings: (1)Arrangement: 2 Form A; (2)Initial contact resistance, max. (By voltage drop 6 V DC 1 A): Max. 50 mΩ; (3)Contact material: Gold-clad AgNi type; (4)Rating (resistive load): 3 A 125 V AC; (5)Expected life (min. operations): Mechanical (at 180 cpm): 106, Electrical (at 20 cpm) (at rated load): 5 × 104 (ON: OFF=1.5s: 1.5s).
Features
ALA2F24 features: (1)2 Form A slim type 24(L)×12(W)×25(H) mm; (2)3A type and 5A TV type, 3A type: Contact reliability and break; (3)performance best suited for protecting and switching speakers. 5A TV type: Tough against inrush current and optimal for turning on and off the power supply. Rated TV-4 (UL/CSA); (4)High insulation resistance: Creepage distance and clearances; (5)between contact and coil: Min. 6 mm (In compliance with IEC65), Surge withstand voltage between contact and coil: 10,000 V; (6)High noise immunity realized by the card separation structure between contact and coil; (7)Conforms to the various safety standards: UL/CSA, VDE, TUV, SEMKO approved.

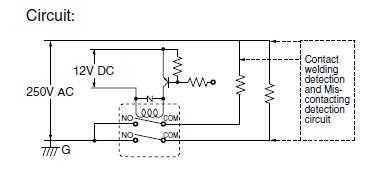

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() ALA2F24 |
![]() Panasonic Electric Works |
![]() General Purpose / Industrial Relays 3A 24VDC DPST PCB |
![]() Data Sheet |
![]()
|
|
||||||||||||
