Product Summary

The 4GBJ610 is a glass passivated bridge rectifier.

Parametrics

Absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage: 1000 V; (2)Maximum RMS Voltage: 700 V; (3)Maximum DC Blocking Voltage: 1000 V; (4)Maximum Average Forward: 6.0 A; (5)Rectified Current @ TC=100℃ (without heatsink): 2.8 A; (6)Peak Forward Surage Current: 175 A; (7)8.3ms Single Half Sine-Wave: 175 A; (8)Super Imposed on Rated Load (JEDEC Method): 175 A; (9)Maximum Forward Voltage at 3.0A DC: 1.1 V; (10)Maximum DC Reverse Current @ TJ=25℃: 10.0 uA; (11)at Rated DC Blocking Voltage @ TJ=125℃: 500 uA; (12)Operating Temperature Range: -55 to +150 ℃; (13)Storage Temperature Range: -55 to +150 ℃.

Features

Features: (1)Rating to 1000V PRV; (2)Ideal for printed circuit board; (3)Low forward voltage drop,high current capability; (4)Reliable low cost construction utilizing molded plastic technique results in inexpensive product; (5)The plastic material has U/L flammability classification 94V-0.

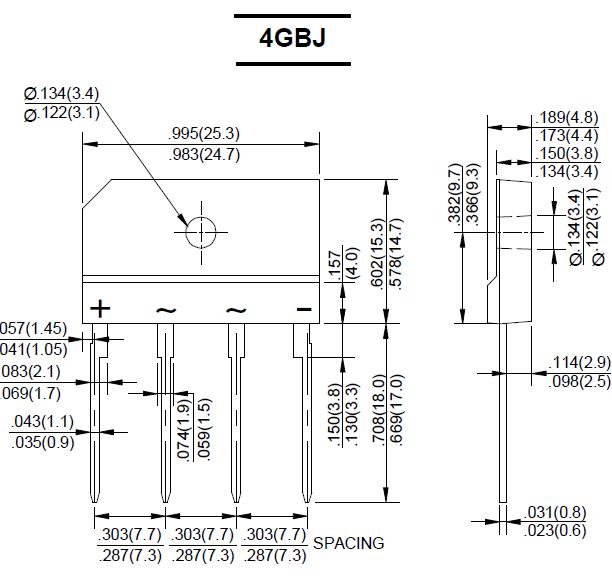

Diagrams
