Product Summary
The DSP1-DC12V-F is a 8 A miniature power relay. It is used in office and industrial electronic, devices; terminal devices of information; processing equipment, such as printer, data recorder; office equipment (copier, facsimile); measuring instruments; nc machines, temperature controllers and programmable logic controllers, etc.
Parametrics
Ratings: (1)Nominal switching capacity (resistive load): DC 5 A 250 V AC, 5 A 30 V DC; (2)Max. switching power (resistive load): 1,250 VA, 150 W; (3)Max. switching voltage: 380 V AC, 125 V DC; (4)Max. switching current: 5 A AC, DC; (5)Nominal operating power: Single side stable, 2 coil latching: 300 mW. 1 coil latching: 150mW; (6)Min. switching capacity (Reference value): 10m A 5 V DC.
Features
Features: (1)Compact with high contact rating; (2)High switching capability; (3)High sensitivity; (4)High breakdown voltage; (5)Latching types available; (6)Wide variation; (7)Sealed construction allows automatic washing; (8)Complies with safety standards.

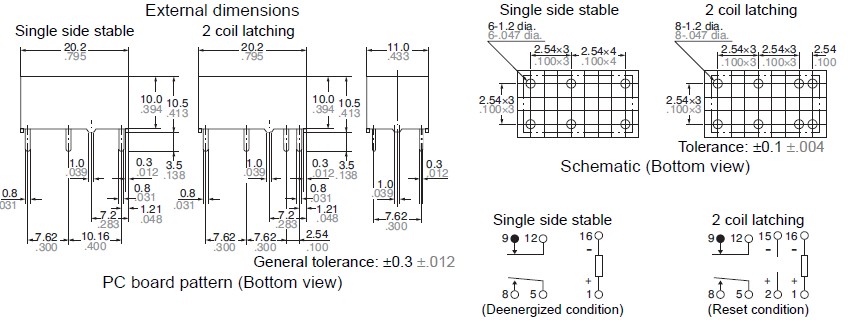

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

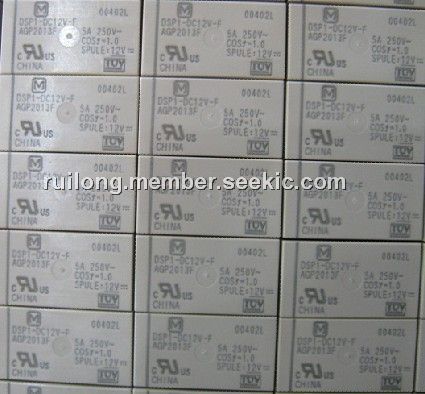

 DSP1-DC12V-F |
Panasonic Electric Works |
General Purpose / Industrial Relays 8A 12V 1FORMA/1FORMB NON-LATCHING PCB |
Data Sheet |
|
|
||||||||||||
