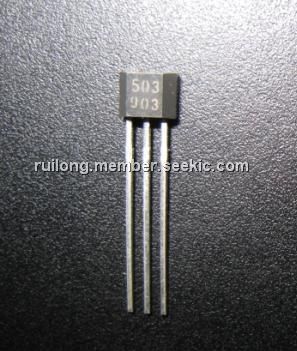

Product Summary
The UGN3503 is a ratiometric, linear hall-effect sensor. As motion detector, gear tooth sensor, and proximity detector, it is a magnetically driven mirror of mechanical events. As sensitive monitors of electromagnets, the UGN3503 can effectively measure a system performance with negligible system loading while providing isolation from contaminated and electrically noisy environments.
Parametrics
UGN3503 absolute maximum ratings: (1)Supply Voltage, VCC: 8 V; (2)Magnetic Flux Density, B: Unlimited; (3)Operating Temperature Range, TA: -20℃ to +85℃; (4)Storage Temperature Range, TS: -65℃ to +150℃.
Features
UGN3503 features: (1)Extremely Sensitive; (2)Flat Response to 23 kHz; (3)Low-Noise Output; (4)4.5 V to 6 V Operation; (5)Magnetically Optimized Package.

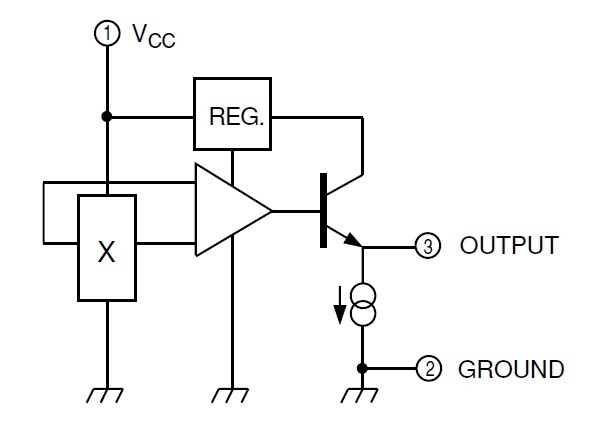

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
UGN3503UA |
Other |
Data Sheet |
Negotiable |
|
||||||
UGN3503U |
Other |
Data Sheet |
Negotiable |
|
||||||
UGN3503LT |
Other |
Data Sheet |
Negotiable |
|
