Product Summary

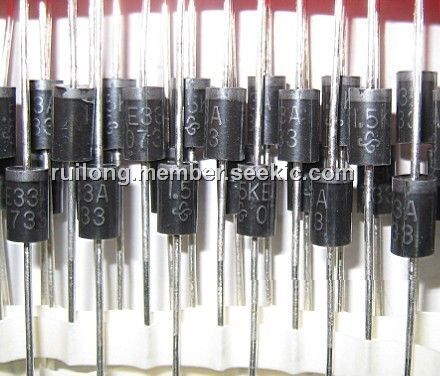

The 1N6283A is designed to protect voltage sensitive components from high voltage, high energy transients. It has excellent clamping capability, high surge capability, low zener impedance and fast response time. The device is ON Semiconductor’s exclusive, cost-effective, highly reliable Surmetic axial leaded package and are ideally-suited for use in communication systems, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications, to protect CMOS, MOS and Bipolar integrated circuits.
Parametrics
Absolute maximum ratings: (1)Peak Power Dissipation @ TL ≤ 25 ℃: 1500 W; (2)Steady State Power Dissipation @ TL ≤ 75 ℃, Lead Length = 3/8 in: 5.0 W, Derated above TL = 75 ℃: 20 mW/℃; (3)Thermal Resistance, Junction.to.Lead: 20 ℃/W; (4)Forward Surge Current @ TA = 25℃: 200 A; (5)Operating and Storage: -65 to +175 ℃; (6)Temperature Range: -65 to +175 ℃.
Features
Features: (1)Working Peak Reverse Voltage Range - 5.8 V to 214 V; (2)Peak Power - 1500 Watts @ 1 ms; (3)ESD Rating of Class 3 (>16 kV) per Human Body Model; (4)Maximum Clamp Voltage @ Peak Pulse Current; (5)Low Leakage < 5 μA Above 10 V; (6)UL 497B for Isolated Loop Circuit Protection; (7)Response Time is Typically < 1 ns; (8)Pb-Free Packages are Available.

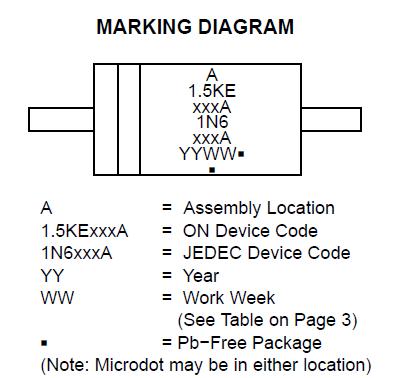

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 1N6283A |
ON Semiconductor |
TVS Diodes - Transient Voltage Suppressors 33V 1500W |
Data Sheet |
Negotiable |
|
||||||||||||
 |
1N6283A-E3/51 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 33V Unidirect |
Data Sheet |
|
|
||||||||||||
|
1N6283A-E3/73 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 33V Unidirect |
Data Sheet |
|
|
||||||||||||
|
1N6283AG |
ON Semiconductor |
TVS Diodes - Transient Voltage Suppressors 33V 1500W Unidirectional |
Data Sheet |
|
|
||||||||||||
|
1N6283AHE3/73 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 33V 5% Unidir |
Data Sheet |
|
|
||||||||||||
|
1N6283ARL4G |
ON Semiconductor |
TVS Diodes - Transient Voltage Suppressors 33V 1500W Unidirectional |
Data Sheet |
|
|
||||||||||||
|
1N6283ARL4 |
ON Semiconductor |
TVS Diodes - Transient Voltage Suppressors 33V 1500W |
Data Sheet |
Negotiable |
|
||||||||||||
|
1N6283A-E3/54 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 33V Unidirect |
Data Sheet |
|
|
||||||||||||
