Product Summary

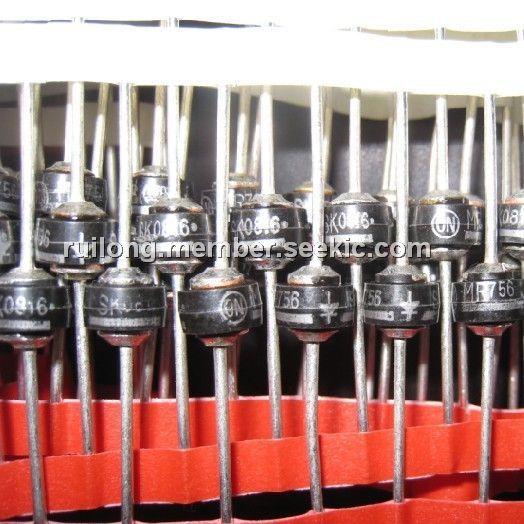

The MR756 is a high current lead mounted rectifier.
Parametrics
MR756 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage VRRM: 600 V; (2)Non.Repetitive Peak Reverse Voltage VRSM: 720 V; (3)RMS Reverse Voltage VR(RMS): 420 V; (4)Average Rectified Forward Current IO: 22 A(TL = 60℃, 1/8 in Lead Lengths); 6.0 A(TA = 60℃, P.C. Board mounting); (5)Non.Repetitive Peak Surge Current IFSM: 400 A(for 1 cycle); (6)Operating and Storage Junction Temperature Range TJ, Tstg: -65 to +175 ℃.
Features
MR756 features: (1)Current Capacity Comparable to Chassis Mounted Rectifiers; (2)Very High Surge Capacity; (3)Insulated Case; (4)Pb-Free Packages are Available.

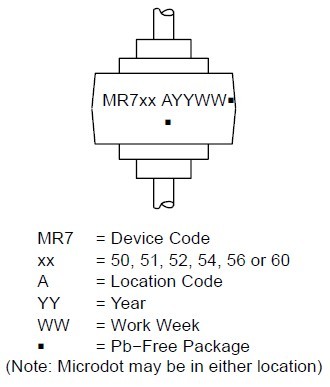

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MR756 |
ON Semiconductor |
Rectifiers 600V 6A Silicon |
Data Sheet |
Negotiable |
|
||||
|
MR756-BP |
Micro Commercial Components (MCC) |
Rectifiers |
Data Sheet |
Negotiable |
|
||||
 |
MR756G |
ON Semiconductor |
Rectifiers 600V 6A Silicon |
Data Sheet |
Negotiable |
|
||||
|
MR756RLG |
ON Semiconductor |
Rectifiers 600V 6A Silicon |
Data Sheet |
Negotiable |
|
||||
|
MR756RL |
ON Semiconductor |
Rectifiers 600V 6A Silicon |
Data Sheet |
Negotiable |
|
||||
|
MR756FR |
Other |
|
Data Sheet |
Negotiable |
|
||||
