Product Summary

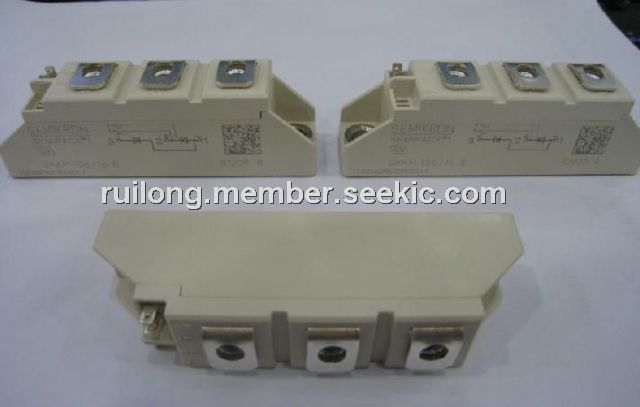

The SKKH106/16E is a Thyristor / Diode Module. The applications of the SKKH106/16E include DC motor control (e.g. for machine tools), AC motor soft starters, Temperature control (e.g. for ovens, chemical processes). Professional light dimming (studios, theaters).
Parametrics
SKKH106/16E absolute maximum ratings: (1)ITAV: 106 A; (2)ID: 145/180 A; (3)IRMS: 200/3×140 A; (4)ITSM: 2250 A at Tvj = 25 ℃; 10 ms, 1900 A at Tvj = 130 ℃; 10 ms, 25000 A2s at Tvj = 25 ℃; 8,3 ... 10 ms, 18000 A2s at Tvj = 130 ℃; 8,3 ... 10 ms; (5)tgd: 1 at Tvj = 25 ℃; IG = 1 A, diG/dt = 1 A/μs; (6)tgr: 2 at VD = 0,67 . VDRM; (7)(di/dt)cr: 150 A/μs at Tvj = 130 ℃.
Features
SKKH106/16E features: (1)Heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)Hard soldered joints for high reliability; (3)UL recognized, file no. E 63 532.
Diagrams
 |
