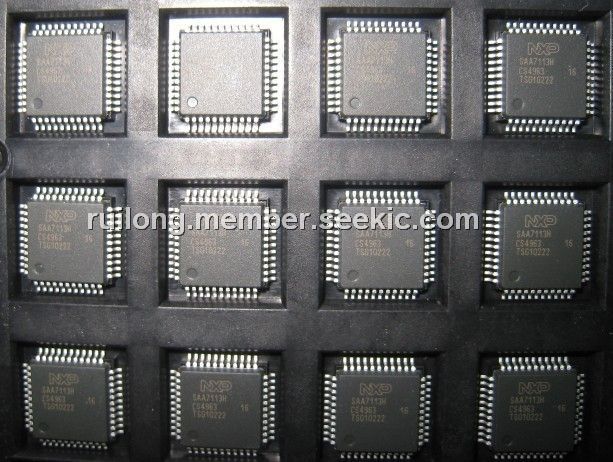

Product Summary
The SAA7113H is a 9-bit video input processor. It is a combination of a two-channel analog preprocessing circuit including source selection, anti-aliasing filter and ADC, an automatic clamp and gain control, a Clock Generation Circuit (CGC), a digital multi-standard decoder (PAL BGHI, PAL M, PAL N, combination PAL N, NTSC M, NTSC-Japan, NTSC N and SECAM), a brightness, contrast and saturation control circuit, a multi-standard VBI data slicer and a 27 MHz VBI data bypass. The applications of the SAA7113H include: (1)Notebook (low power consumption); (2)PCMCIA card application; (3)AGP based graphics cards; (4)Image processing; (5)Video phone applications; (6)Intercast and PC teletext applications; (7)Security applications.
Parametrics
SAA7113H absolute maxing ratings: (1)VDDD digital supply voltage: MIN=3.0V, TYP=3.3V, MAX=3.6V; (2)VDDA analog supply voltage: MIN=3.1V, TYP=3.3V, MAX=3.5V; (3)Tamb operating ambient temperature: MIN=0℃, TYP=25℃, MAX=70℃; (4)PA+D analog and digital power dissipation: TYP=0.4W.
Features
SAA7113H features: (1)Four analog inputs, internal analog source selectors, e.g. 4 ×CVBS or 2 × Y/C or (1× Y/C and 2 × CVBS); (2)Two analog preprocessing channels in differential CMOS style for best S/N-performance; (3)Fully programmable static gain or automatic gain control for the selected CVBS or Y/C channel; (4)Switchable white peak control; (5)Two built-in analog anti-aliasing filters; (6)Two 9-bit video CMOS Analog-to-Digital Converters (ADCs), digitized CVBS or Y/C-signals are available on the VPO-port via I2C-bus control; (7)On-chip clock generator; (8)Line-locked system clock frequencies.

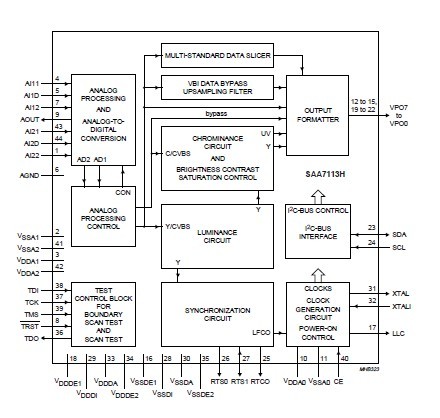

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SAA7113H |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
SAA7113H/V2,518 |
NXP Semiconductors |
Video ICs VIDEO INPUT PROCESSOR (V9) |
Data Sheet |
Negotiable |
|
||||
|
SAA7113H/V2,557 |
NXP Semiconductors |
Video ICs 9-BIT VIDEO INPUT |
Data Sheet |
Negotiable |
|
||||
|
SAA7113HB |
NXP Semiconductors |
Video ICs 9-BIT VIDEO INPUT PROCESSOR |
Data Sheet |
Negotiable |
|
||||
