Product Summary

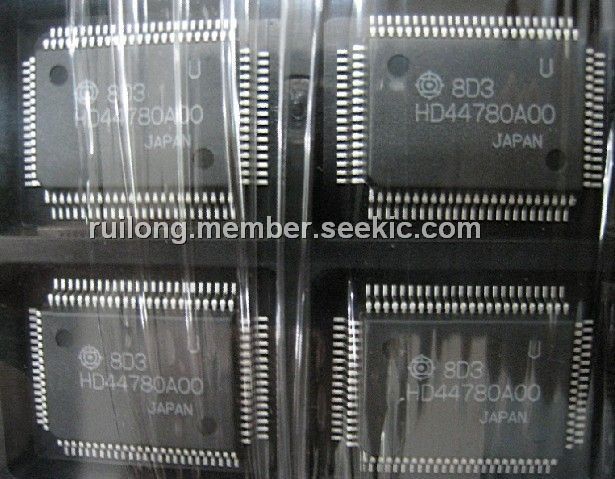

The HD44780UA00FS is a dot-matrix liquid crystal display controller and driver. It displays alphanumerics, Japanese kana characters, and symbols. The HD44780UA00FS can be configured to drive a dot-matrix liquid crystal display under the control of a 4- or 8-bit microprocessor. Since all the functions such as display RAM, character generator, and liquid crystal driver, required for driving a dot-matrix liquid crystal display are internally provided on one chip, a minimal system can be interfaced with this controller/driver.
Parametrics
HD44780UA00FS absolute maxing ratings: (1)Power supply voltage (1) VCC–GND: –0.3 to +7.0 V ; (2)Power supply voltage (2) VCC–V5: –0.3 to +13.0 V ; (3)Input voltage Vt: –0.3 to VCC +0.3 V ; (4)Operating temperature Topr: –30 to +75 ℃; (5)Storage temperature Tstg: –55 to +125 ℃.
Features
HD44780UA00FS features: (1)5×8 and 5×10 dot matrix possible; (2)Low power operation support: 2.7 to 5.5V; (3)Wide range of liquid crystal display driver power: 3.0 to 11V; (4)Liquid crystal drive waveform: A (One line frequency AC waveform); (5)Correspond to high speed MPU bus interface: 2 MHz (when VCC = 5V); (6)4-bit or 8-bit MPU interface enabled; (7)80×8-bit display RAM (80 characters max.); (8)9,920-bit character generator ROM for a total of 240 character fonts: 208 character fonts (5×8 dot); 2 character fonts (5×10 dot).

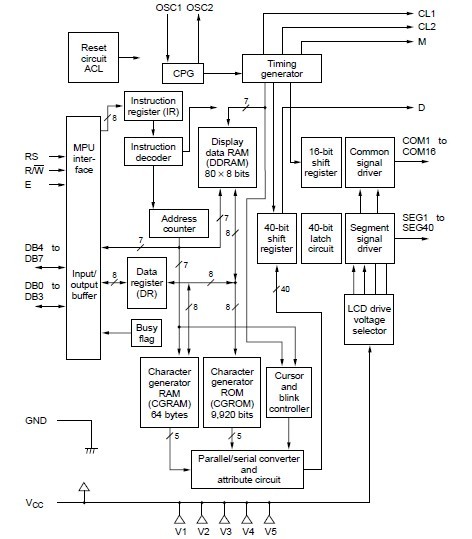

Diagrams
 |
