Product Summary

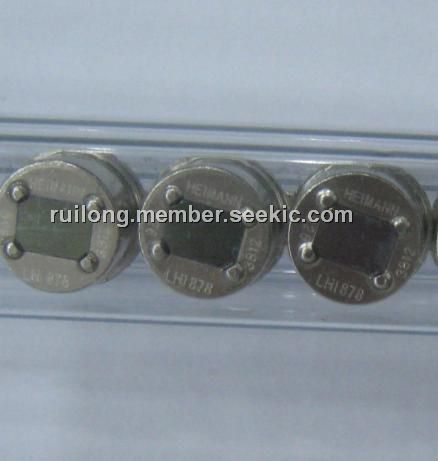

The LHI878 is a dual element detector which is designed for motion control. It is available in TO-5 housing with standard infrared filter. The LHI878 offers high responsivity with excellent common mode performance (match) and low noise at steady state and temperature changes.
Parametrics
LHI878 specifications: (1)On the conditions of 2 elements, Element size: typ=2×1 mm; (2)On the conditions of 100℃, 1 Hz, Responsivity: min=3300 V/W, typ=4000 V/W ; (3)Match: typ=1 %, max=10 %; (4)On the conditions of 25℃, 0,3 ~ 10Hz, Noise: typ=20 μpp, max=50 μpp ; (5)On the conditions of RS =47kΩ, 25℃, Offset Voltage: min=0.2 V, max=1.55 V ; (6)On the conditions of RS =47kΩ, 25℃, Output Impedance: typ=5 kΩ, max=10kΩ; (7)On the conditions of RS =47kΩ, 25℃, Operating Voltage: min=2 V, max=15 V; (8)On the conditions of unobstructed, Field of View, vertical: typ=95°; (9)On the conditions of non permanent, Operating Temperature: min=-40 ℃, max=85 ℃ ; (10)On the conditions of non permanent, Storage Temperature: min=-40 ℃, max=85 ℃.

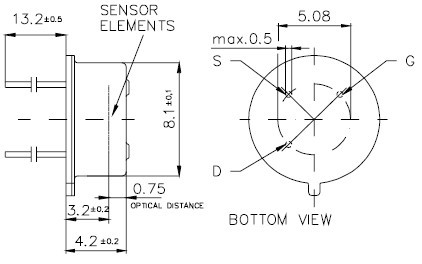

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LHI878 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
LHi807 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LHi807TC |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LHI808 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LHI808TC |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LHI814 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LHi874 |
Other |
|
Data Sheet |
Negotiable |
|
||||
