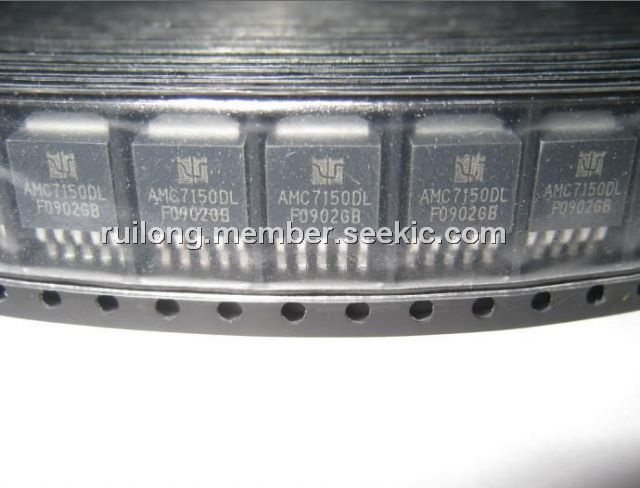

Product Summary

The AMC7150DLFT is a PWM power LED driver IC. The driving current from few milliamps up to 1.5A. It allows high brightness power LED operating at high efficiency from 4Vdc to 40Vdc. Up to 200KHz external controlled operation frequency. External resistor controlled the maximum output current to single LED or a LED string. The applications of the AMC7150DLFT include: DC/DC LED driver, Automotive, Lighting.

Parametrics

AMC7150DLFT absolute maximum ratings: (1)Input Voltage, VCC: -0.3V to 40V; (2)Output Voltage, OUT: -0.3V to 40V; (3)Maximum Junction Temperature , TJ: 150℃; (4)Storage Temperature Range: -40℃ to 150℃; (5)Lead Temperature (soldering, 10 seconds): 260℃.

Features

AMC7150DLFT features: (1)Only 5 external components required; (2)Output driving current up to 1.5A; (3)4V~40V wide operation voltage range; (4)High efficiency; (5)ESD protection HBM 2KV; (6)TO-252 5-pin power package.

Diagrams

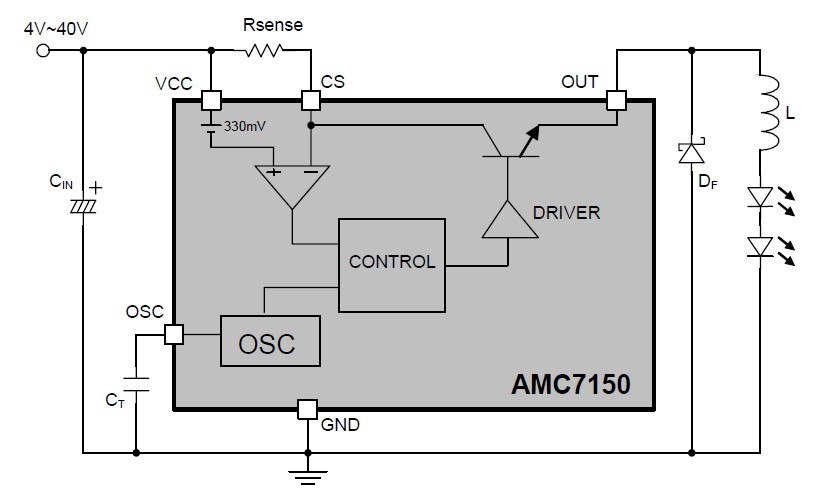

AMC7150DLFT block diagram
