LM2576S-5.0

Voltage Regulator, TO263, 45V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.08~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.08~1.50

PartNumber:: LM2576S-5.0

Brand:: National Semiconductor - NS | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Berry's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-14

From Other Seller

Part Number:LM2576S-5.0
US $1.08 - 1.50
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

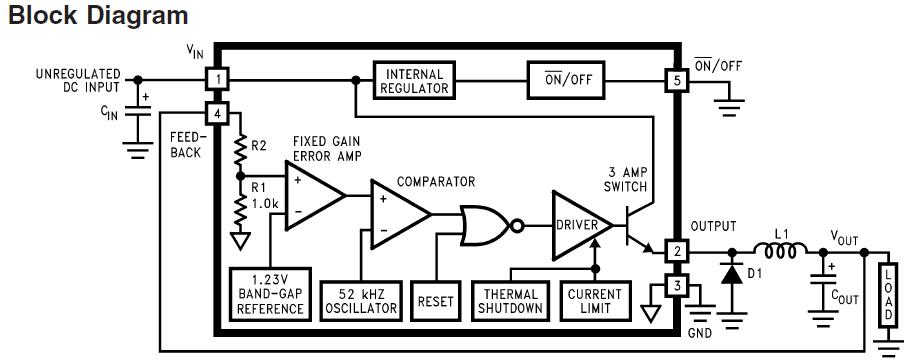

The LM2576S-5.0 is a simple switcher 3A Step-Down Voltage Regulator. The device can provide all the active functions for a step-down (buck) switching regulator, capable of driving 3A load with excellent line and load regulation. The LM2576S-5.0 is available in fixed output voltages of 3.3V, 5V, 12V, 15V, and an adjustable output version. The device offers a high-efficiency replacement for popular three-terminal linear regulators. The LM2576S-5.0 substantially reduces the size of the heat sink, and in some cases no heat sink is required. The applications of the device include Simple high-efficiency step-down (buck) regulator, Efficient pre-regulator for linear regulators, On-card switching regulators and Positive to negative converter (Buck-Boost).

Parametrics

LM2576S-5.0 absolute maximum ratings: (1)Maximum Supply Voltage: 45V; (2)ON /OFF Pin Input Voltage: -0.3V ≤ V ≤ +VIN; (3)Output Voltage to Ground (Steady State): -1V; (4)Power Dissipation: Internally Limited; (5)Storage Temperature Range: -65 to +150℃; (6)Maximum Junction Temperature: 150℃; (7)Minimum ESD Rating (C = 100 pF, R = 1.5 kΩ): 2kV; (8)Lead Temperature (Soldering, 10 Seconds): 260℃.

Features

LM2576S-5.0 features: (1)3.3V, 5V, 12V, 15V, and adjustable output versions; (2)Adjustable version output voltage range, 1.23V to 37V (57V for HV version) ±4% max over line and load conditions; (3)Guaranteed 3A output current; (4)Wide input voltage range, 40V up to 60V for HV version; (5)Requires only 4 external components; (6)52 kHz fixed frequency internal oscillator; (7)TTL shutdown capability, low power standby mode; (8)High efficiency; (9)Uses readily available standard inductors; (10)Thermal shutdown and current limit protection; (11)P+ Product Enhancement tested.
