Product Summary
The LM2452TB/NOPB is a triple channel high voltage DC coupled CRT driver circuit designed for use in DTV applications. The LM2452TB/NOPB IC contains three high input impedance, wide band amplifiers which directly drive the RGB cathodes of a CRT. Each amplifier has a summing input where the DC level of the output is controlled by a low voltage DC input voltage. Normally the DC input voltage is from a DAC. Each channel of the LM2452TB/NOPB has its gain internally set to -54 and can drive CRT capacitive loads as well as resistive loads present in other applications, limited only by the power dissipation of the package.
Parametrics
LM2452TB/NOPB maximum ratings: (1)Supply Voltage (VCC): +250V; (2)Bias Voltage (VBB): +16V; (3)Input Voltage (VIN): 0.5V to VBB +0.5V; (4)Storage Temperature Range (TSTG): 65℃ to +150℃; (5)Lead Temperature(Soldering, <10 sec.): 300℃; (6)ESD Tolerance, Human Body Model: 2 kV; (7)Machine Model: 200V; (8)Junction Temperature 150℃.
Features
LM2452TB/NOPB features: (1)17 MHz bandwidth; (2)100V black level adjustment range using 0V to 5V input; (3)Current output for IK feedback systems; (4)Greater than 130VP-P output swing capability; (5)0V to 5V input voltage range; (6)Stable with 0 pF–20 pF capacitive loads and inductive peaking networks; (7)Convenient TO-247 staggered thin lead package style.

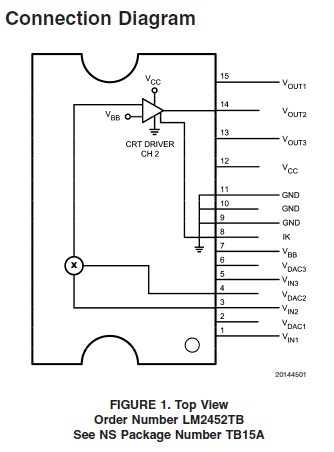

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LM2452TB/NOPB |
National Semiconductor (TI) |
Display Drivers & Controllers |
Data Sheet |
|
|
|||||||||||||
