Product Summary

The NDF06N60ZG is a N-channel power MOSFET. The applications of it include: (1)Adapter (Notebook, Printer, Gaming); (2)LCD Panel Power; (3)Lighting Ballasts.

Parametrics

NDF06N60ZG absolute maxing ratings: (1)Drain-to-Source Voltage VDSS: 600V; (2)Continuous Drain Current ID: 6.0A; (3)Continuous Drain Current TA=100℃ ID: 3.8A; (4)Pulsed Drain Current, VGS @ 10V IDM: 20A; (5)Power Dissipation PD: 31W; (6)Gate-to-Source Voltage VGS: ±30V; (7)Single Pulse Avalanche Energy, L=6.3mH, ID=6.0A EAS: 113mJ; (8)ESD (HBM)(JESD 22-114-B)Vesd: 3000V.

Features

NDF06N60ZG features: (1)Low ON Resistance; (2)Low Gate Charge; (3)100% Avalanche Tested; (4)These Devices are Pb-Free and are RoHS Compliant.

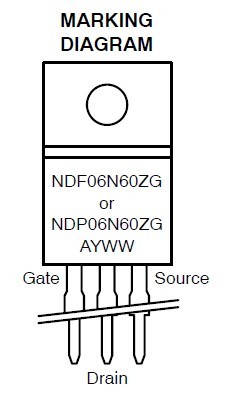

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NDF06N60ZG
NDF06N60ZG
ON Semiconductor
MOSFET NFET TO220FP 600V 6A .98R
Data Sheet
0-1: $0.75
1-25: $0.62
25-100: $0.53
100-500: $0.49
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NDF02N60ZG
NDF02N60ZG
ON Semiconductor
MOSFET 4.8 OHM 600V TO-220FP
Data Sheet
0-1: $0.50
1-25: $0.39
25-100: $0.34
100-250: $0.30
NDF03N60ZG
NDF03N60ZG
ON Semiconductor
MOSFET 3.6 OHM 600V TO-220FP
Data Sheet
0-1: $0.49
1-25: $0.43
25-100: $0.35
100-250: $0.30
NDF03N60ZH
NDF03N60ZH
ON Semiconductor
MOSFET NFET 600V 3A 3.3
Data Sheet
0-1: $0.53
1-25: $0.41
25-100: $0.36
100-250: $0.31
NDF04N60ZG
NDF04N60ZG
ON Semiconductor
MOSFET NFET T0220FP 600V 4A 1.8R
Data Sheet
0-1: $0.50
1-25: $0.47
25-100: $0.46
100-250: $0.44
NDF04N62ZG
NDF04N62ZG
ON Semiconductor
MOSFET NFET TO220FP 620V 2 OHM
Data Sheet
0-1: $0.62
1-25: $0.50
25-100: $0.43
100-250: $0.38
NDF05N50ZG
NDF05N50ZG
ON Semiconductor
MOSFET NFET T0220FP 500V 5A 1.5R
Data Sheet
0-1: $0.39
1-25: $0.35
25-100: $0.33
100-250: $0.33
