Product Summary

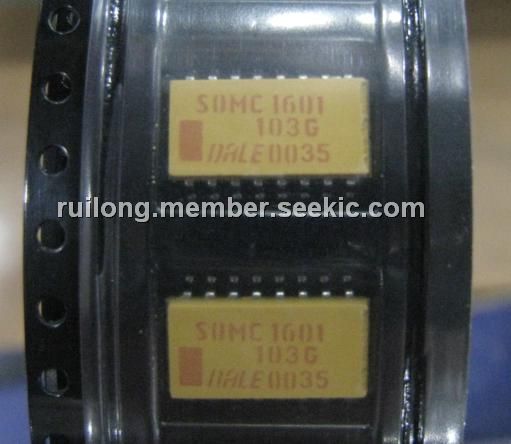

The SOMC1601-103G is a thick film, dual-in-line resistor network.

Parametrics

SOMC1601-103G specifications: (1)Rated Dissipation at 70℃ per Element: 0.08W/0.16W/0.08W; (2)Limiting Element Voltage: 50V; (3)Voltage Coefficient: < 50ppm/V; (4)Insulation Voltage (1min): 200Vdc/ac peak; (5)Category Temperature Range: -55/+150℃; (6)Insulation Resistance: > 10000000000Ω; (7)TC Tracking (-55℃ to +125℃): 50ppm/℃.

Features

SOMC1601-103G features: (1)14,16 or 20 terminal package; (2)Isolated, bussed or TTL-terminator circuits; (3)Molded case construction; (4)Thick film resistive elements; (5)Reflow solderable; (6)Compatible with automatic surface mounting equipment; (7)Reduces total assembly costs; (8)For wave flow soldering contact factory; (9)Lead (Pb)-free version is RoHS compliant.

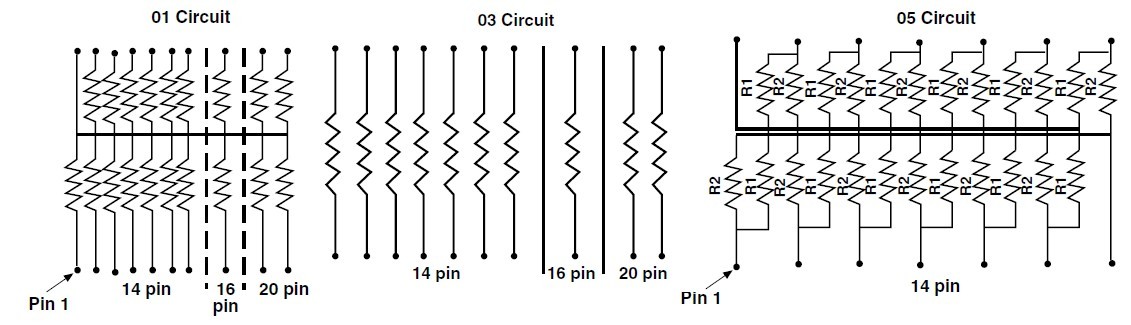

Diagrams
