Product Summary
The VN66AFD is a N-channel 60V (DC) MOSFET. The applications of it include: (1)Direct Logic-Level Interface: TTL/CMOS; (2)Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc.; (3)Battery Operated Systems; (4)Solid-State Relays.
Parametrics
VN66AFD absolute maxing ratings: (1)Drain-Source Voltage VDS: 60V; (2)Gate-Source Voltage VGS: ±30V; (3)Continuous Drain Current(TJ = 150℃) TA= 25℃ ID: 1.46A; TA= 100℃: 0.92A; (4)Pulsed Drain Current IDM: 3A; (5)Power Dissipation TA=25℃ PD: 15W; TA= 100℃: 6W; (6)Thermal Resistance, Junction-to-Case RthJC: 8.3℃/W; (7)Operating Junction and Storage Temperature Range TJ, Tstg: –55 to 150℃.
Features
VN66AFD features: (1)Low On-Resistance: 1.2Ω; (2)Low Threshold: <1.6 V; (3)Low Input Capacitance: 35 pF; (4)Fast Switching Speed: 9 ns; (5)Low Input and Output Leakage.

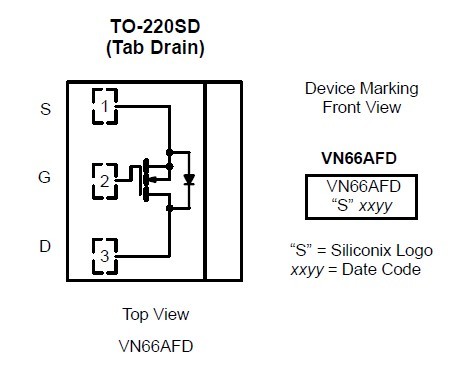

Diagrams
