Product Summary

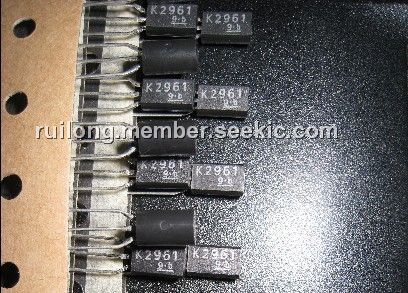

The 2SK2961 is a Field Effect Transistor. The applications of it are Relay Drive, Motor Drive and DC-DC Converter.
Parametrics
2SK2961 absolute maximum ratings: (1)Drain-source voltage:60V ; (2)Drain-gate voltage (RGS = 20 kΩ):60V ; (3)Gate-source voltage:±20V ; (4)Drain current: DC:2.0A, Pulse:6.0A ; (5)Drain power dissipation:0.9W ; (6)Channel temperature:150℃; (7)Storage temperature range:-55℃ to 150℃.
Features
2SK2961 features: (1)Low drain-source ON resistance: RDS (ON) = 0.2Ω (typ.) ; (2)High forward transfer admittance: |Yfs| = 2.0 S (typ.) ; (3)Low leakage current: IDSS = 100μA (max) (VDS = 60 V) ; (4)Enhancement mode: Vth = 0.8 to 2.0V (VDS = 10 V, ID = 1 mA) .
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2SK2961 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
2SK2961(F,M) |
MOSFET N-CH 60V 2A TO-92 |
Data Sheet |
Negotiable |
|
||||||||||||||
2SK2961(TE6,F,M) |
Toshiba |
MOSFET N-ch 60V 2A 0.27 ohm |
Data Sheet |
|
|
