Product Summary

The AD8065AR FastFET amplifier is voltage feedback amplifier with FET inputs offering high performance and ease of use. The AD8065AR is a single amplifier, and the AD8066 is a dual amplifier.

Parametrics

AD8065AR absolute maximum ratings: (1)Supply Voltage: 26.4 V; (2)Power Dissipation: See Figure 3; (3)Common-Mode Input Voltage: VEE -0.5 V to VCC + 0.5 V; (4)Differential Input Voltage: 1.8 V; (5)Storage Temperature: -65℃ to +125℃; (6)Operating Temperature Range: -40℃ to +85℃; (7)Lead Temperature Range(Soldering, 10 sec): 300℃.

Features

AD8065AR features: (1)FET input amplifier; (2)1 pA input bias current; (3)Low cost; (4)High speed: 145 MHz, .3 dB bandwidth (G = +1); (5)180 V/μs slew rate (G = +2); (6)Low noise; (7)Wide supply voltage range: 5 V to 24 V; (8)Single-supply and rail-to-rail output; (9)Low offset voltage 1.5 mV max; (10)High common-mode rejection ratio: -100 dB

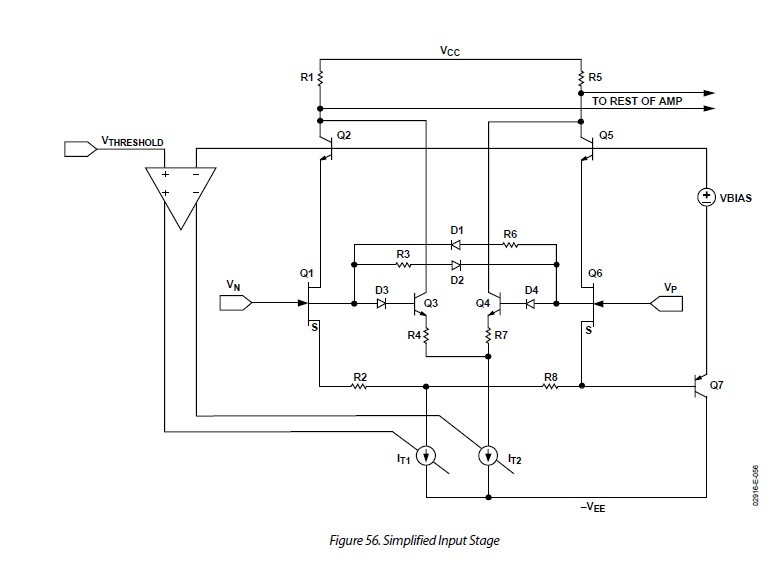

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD8065AR-REEL7
AD8065AR-REEL7

Analog Devices Inc

IC AMP FET-IN HP HS 8-SOIC T/R

Data Sheet

1-1000: $1.59
AD8065ART-R2
AD8065ART-R2

Analog Devices Inc

IC AMP FET-IN HP HS SOT-23 T/R

Data Sheet

1-250: $1.99
AD8065ARTZ-R2
AD8065ARTZ-R2

Analog Devices Inc

IC AMP CFA FET 145MHZ HS SOT23-5

Data Sheet

1-250: $1.81
AD8065ARTZ-REEL
AD8065ARTZ-REEL


IC OPAMP VF R-R LN LP SOT23-5

Data Sheet

0-10000: $1.16
AD8065ARTZ-REEL7
AD8065ARTZ-REEL7


IC OPAMP VF R-R LN LP SOT23-5

Data Sheet

0-3000: $1.16
AD8065ARZ
AD8065ARZ


IC OPAMP VF R-R LN LP 30MA 8SOIC

Data Sheet

0-1: $2.48
1-10: $2.21
10-100: $1.82
100-250: $1.64
250-500: $1.47
500-1000: $1.24
1000-2500: $1.18
AD8065ART-REEL7
AD8065ART-REEL7


IC OPAMP VF R-R LN LP SOT23-5

Data Sheet

0-3000: $1.34
AD8065ART-REEL
AD8065ART-REEL


IC OPAMP VF R-R LN LP SOT23-5

Data Sheet

0-10000: $1.34
