FH23-61S-0.3SHW

0.3mm Contact Pitch, 1.25mm above the board, Flexible Printed Circuit Connector, SMD, 0.3A DC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.92~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.92~1.50

PartNumber:: FH23-61S-0.3SHW

Brand:: Hirose Electric - HEG | Pack: SMD | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Berry's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-17

From Other Seller

Part Number:FH23-61S-0.3SHW
US $0.92 - 1.50
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

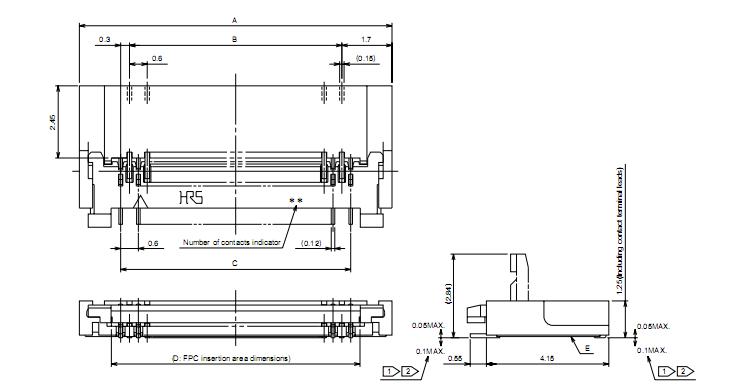

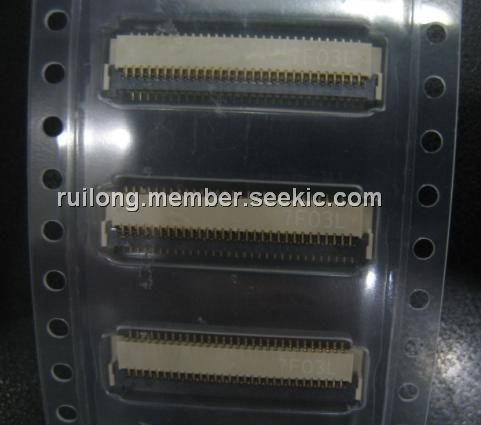

The FH23-61S-0.3SHW is a 0.3mm Contact Pitch, 1.25mm above the board, Flexible Printed Circuit Connector.

Parametrics

FH23-61S-0.3SHW absolute maximum ratings: (1)Current rating:0.3 A DC; (2)Voltage rating:30 V AC; (3)Operating temperature range:-55℃ to +85℃; (4)Operating humidity range:Relative humidity 90% max. (No condensation); (5)Storage temperature range:-10℃ to +50℃; (6)Storage humidity range:Relative humidity 90% max.
