Product Summary

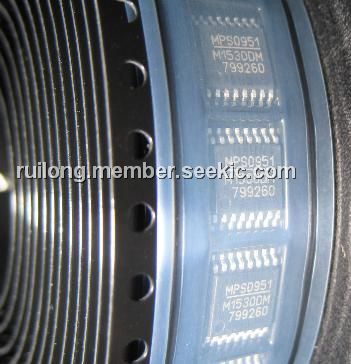

The MP1530DM-LF-Z is a triple output step-up plus linear regulator for TFT bias. It combines a triple output step-up converter with linear regulators to provide a complete DC/DC solution. It is designed to power TFT LCD panels from a regulated 3.3V or 5V supply. The applications of the MP1530DM-LF-Z include: (1)TFT LCD Displays; (2)Portable DVD Players; (3)Tablet PCs; (4)Car Navigation Displays.
Parametrics
MP1530DM-LF-Z absolute maxing ratings: (1)IN Supply Voltage:–0.3V to +6V; (2)SW Voltage: –0.3V to +25V; (3)IN2, GL Voltage: +0.3V to –25V; (4)IN3, GH Voltage: –0.3V to +40V; (5)IN2 to IN3 Voltage: –0.3V to +60V; (6)All Other Pins: –0.3V to +6V; (7)Junction Temperature: 125℃; (8)Lead Temperature: 260℃; (9)Storage Temperature: –65℃ to +150℃.
Features
MP1530DM-LF-Z features: (1)2.7 to 5.5V Operating Input Range; (2)2.8A Switch Current Limit; (3)3 Outputs In a Single Package: Step-Up Converter up to 22V; Positive 20mA Linear Regulator; Negative 20mA Linear Regulator; (4)250mO Internal Power MOSFET Switch; (5)Up to 95% Efficiency; (6)1.4MHz Fixed Frequency; (7)Internal Power-On Sequencing; (8)Adjustable Soft-Start/Fault Timer; (9)Cycle-by-Cycle Over Current Protection; (10)Under Voltage Lockout; (11)Ready Flag; (12)16-Pin, QFN (3mm × 3mm) or TSSOP Packages.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MP1530DM-LF-Z |
Monolithic Power Systems (MPS) |
Switching Converters, Regulators & Controllers 1.4MHz Triple Output Step-Up for TFT Bias |
Data Sheet |
|
|
||||||||||||
