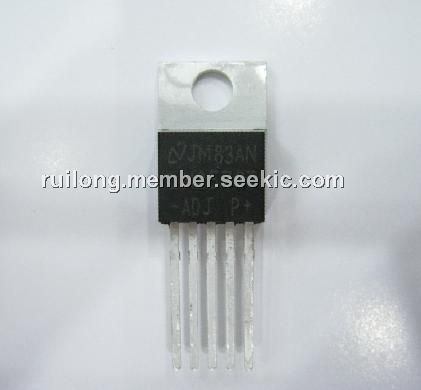

Product Summary
The LM2576T-ADJ is a simple switch, which is a kind of monolithic integrated circuit. The LM2576T-ADJ is ideally suited for easy and convenient design of a step-down switching regulator (buck converter). All circuits of this series are capable of driving a 3.0 A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5.0 V, 12 V, 15 V, and an adjustable output version. The applications of the LM2576T-ADJ include: Simple High-Efficiency Step-Down (Buck) Regulator; Efficient Pre-Regulator for Linear Regulators and so on.
Parametrics
LM2576T-ADJ maximum ratings: (1)Maximum Supply Voltage: 45 V; (2)ON/OFF Pin Input Voltage: 0.3 V 3 V 3 +Vin V; (3)Output Voltage to Ground (Steady.State): 1.0 V; (4)Storage Temperature Range: 65 to +150 ℃; (5)Minimum ESD Rating (Human Body Model: C = 100 pF, R = 1.5 kΩ): 2.0 kV; (6)Lead Temperature (Soldering, 10 seconds): 260 ℃; (7)Maximum Junction Temperature: 150 ℃.
Features
LM2576T-ADJ features: (1)3.3 V, 5.0 V, 12 V, 15 V, and Adjustable Output Versions; (2)Adjustable Version Output Voltage Range, 1.23 to 37 V ± 4%; (3)Maximum Over Line and Load Conditions; (4)Guaranteed 3.0 A Output Current; (5)Wide Input Voltage Range; (6)Requires Only 4 External Components; (7)52 kHz Fixed Frequency Internal Oscillator; (8)TTL Shutdown Capability, Low Power Standby Mode; (9)High Efficiency; (10)Uses Readily Available Standard Inductors; (11)Thermal Shutdown and Current Limit Protection; (12)Moisture Sensitivity Level (MSL) Equals 1.

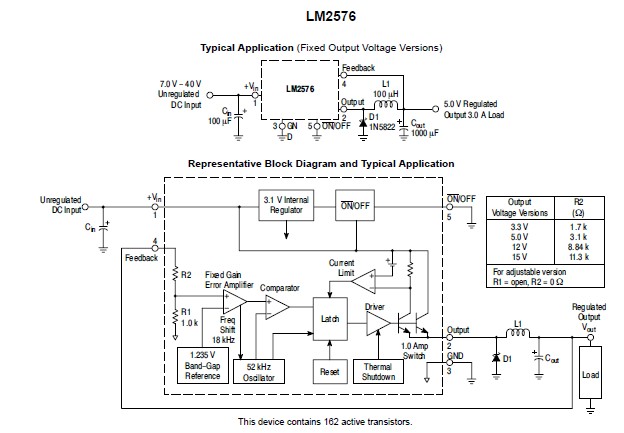

Diagrams
