Product Summary
The M27C160-100F1 is a 16-Mbit EPROM offered in two ranges UV (Ultraviolet Erase) and OTP (One-Time Programmable). It is ideally suited for microprocessor systems requiring large data or program storage and is organized as either 2 Mbit words of 8 bits or 1 Mbit word of 16 bits.
Parametrics
Absolute maximum ratings: (1)Ambient Operating Temperature:-40℃ to 125℃; (2)Temperature Under Bias:–50℃ to 125℃; (3)Storage Temperature:–65℃ to 150℃; (4)Input or Output Voltage (except A9):–2V to 7V; (5)Supply Voltage:–2V to 7V; (6)A9 Voltage:–2V to 13.5V; (7)Program Supply Voltage:–2V to 14V.
Features
Features: (1)5V ± 10% Supply Voltage in Read Operation ; (2)Access Time: 50 ns; (3)Byte-wide or Word-wide Configurable; (4)16 Mbit Mask ROM Replacement; (5)Low Power Consumption:Active Current: 70 mA at 8 MHz,Standby Current: 100 μA; (6)Programming Voltage: 12.5V ± 0.25V; (7)Programming Time: 50 μs/word; (8)Electronic Signature:Manufacturer Code: 20h, Device Code: B1h; (9)ECOPACK packages available.

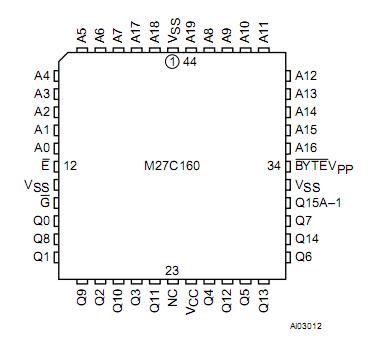

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C160-100F1 |
STMicroelectronics |
EPROM 2Mx8 or 1Mx16 100ns |
Data Sheet |
Negotiable |
|
||||
