Product Summary

The SP3074EEN differential line transceiver is suitable for bidirectional communication on balanced multipoint bus transmission lines and comply with both RS485 and RS422 EIA Standards. The SP3074EEN consists of a differential driver and differential receiver. The SP3074EEN operates from a 3.3V power supply. High receiver input impedance allows a large number of transceivers to share a common data bus while maintaining signal margin and without excessive loading or use of expensive repeaters. The high impedance driver output of the SP3074EEN is maintained over the entire common-mode voltage range from -7 to +12V. Receiver will failsafe to logic 1 output when inputs are open, shorted or terminated. Drivers include built-in short-circuit protection and a thermal-overload shutdown to protect against excessive power dissipation from bus contention or cable faults. All RS485 inputs are ESD protected up to ±15kV (Air-Gap and Human Body Model) and up to ±8kV Contact discharge (IEC 1000-4-2).

Parametrics

SP3074EEN absolute maximum ratings: (1)VCC: +6.0V; (2)Input Voltage at control input pins (RE, DE): -0.3V to 6V; (3)Driver Input Voltage (RE, DE): -0.3V to 6V; (4)Driver Output Voltage (A, B, Y, & Z): -8V to +13V; (5)Receiver Input Voltage (A, B): -8V to +13V; (6)Junction Temperature: +150℃; (7)Storage Temperature Range: -65oC to +150℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

SP3074EEN features: (1)±15kV ESD protection for RS485 pins; (2)3.3V low-power operation; (3)Advanced Receiver-failsafe protection for open, shorted or terminated lines; (4)Up to 256 Transceivers may share Bus; (5)Very low load for 8x greater fanout; (6)Hot Swap glitch protection RE and DE; (7)Thermal shutdown protects against driver contention; (8)Availab; (9)Three applications-optimized speed grades; (10)Small form factor SO-narrow packages; (11)Industrial (-40 to +85℃) and Extended(-40 to +85℃) temperature grades.

Diagrams

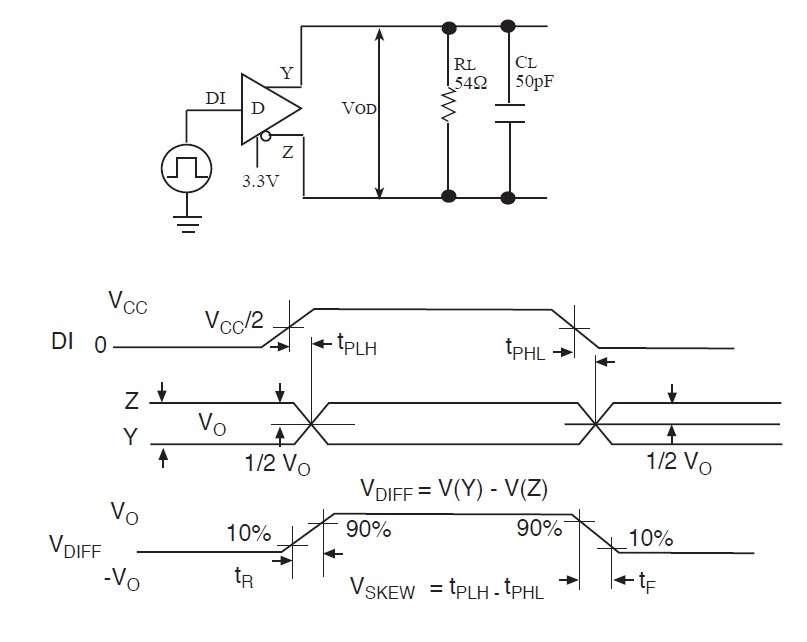

SP3074EEN driver propagation delay time test circuit and timing diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SP3074EEN-L
SP3074EEN-L
Exar
RS-422/RS-485 Interface IC RS485/RS422 Driver/ Receiver Transceiver
Data Sheet
0-1: $1.63
1-25: $1.29
25-100: $1.09
100-250: $0.92
SP3074EEN-L/TR
SP3074EEN-L/TR
Exar
RS-422/RS-485 Interface IC RS485/RS422 Driver/ Receiver Transceiver
Data Sheet
0-1560: $0.78
1560-2500: $0.71
