Product Summary

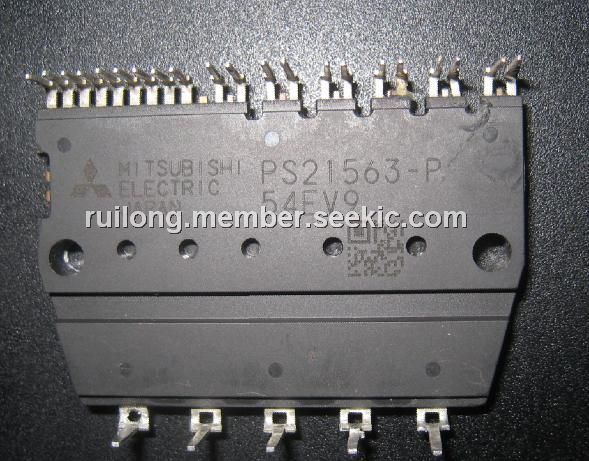

The PS21563-P is a Dual-In-Line Package Intelligent Power Module. The applications of the PS21563-P include AC100V~200V inverter drive for small power motor control.
Parametrics
PS21563-P absolute maximum ratings: (1)Supply voltage: 450 V; (2)Supply voltage (surge): 500 V; (3)Collector-emitter voltage: 600 V; (4)Each IGBT collector current: 10 A; (5)Each IGBT collector current (peak): 20 A; (6)Collector dissipation: 20 W; (7)Junction temperature: -20 to +125℃.
Features
PS21563-P features: (1)For upper-leg IGBTS :Drive circuit, High voltage isolated high-speed level shifting, Control supply under-voltage (UV) protection; (2)For lower-leg IGBTS : Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC); (3)Fault signaling : Corresponding to an SC fault (Lower-leg IGBT) or a UV fault (Lower-side supply); (4)Input interface : 3, 5V line CMOS/TTL compatible. (High Active); (5)UL Approved : Yellow Card No. E80276.

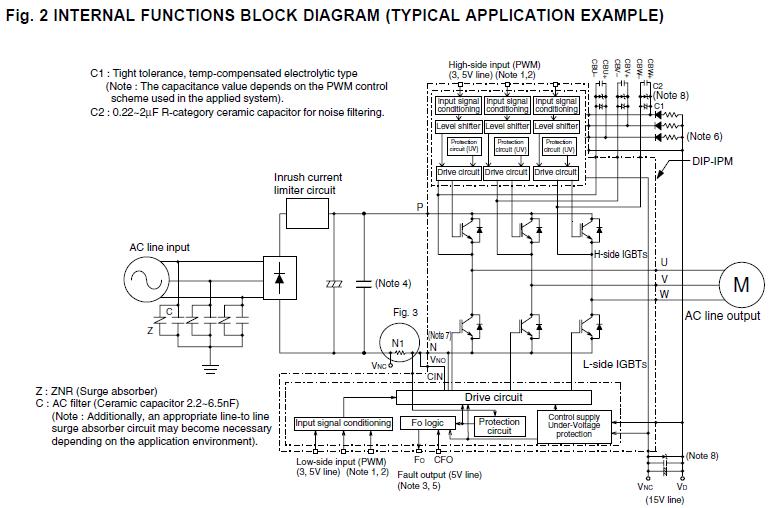

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS21563-P |
|
MOD IPM 600V 10A MINI DIP |
Data Sheet |
Negotiable |
|
||||
