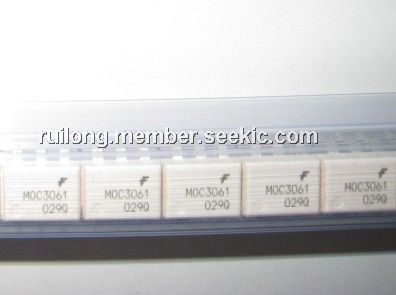

Product Summary
The MOC3061 is a 6-pin DIP zero-cross optoisolator triac driver output. It consists of gallium arsenide infrared emitting diodes optically coupled to monolithic silicon detectors performing the functions of Zero Voltage Crossing bilateral triac drivers. The applications of the MOC3061 include: (1)Solenoid/Valve Controls; (2)Temperature Controls; (3)Lighting Controls; (4)E.M. Contactors; (5)Static Power Switches; (6)AC Motor Starters; (7)AC Motor Drives; (8)Solid State Relays.
Parametrics
MOC3061 absolute maxing ratings: (1)Reverse Voltage VR: 6 Volts; (2)Forward Current — Continuous IF: 60 mA; (3)Total Power Dissipation @ TA = 25℃ Negligible Power in Output Driver PD: 120mW; Derate above 25℃: 1.41mW/℃; (4)Off–State Output Terminal Voltage VDRM: 600 Volts; (5)Peak Repetitive Surge Current(PW = 100 μs, 120 pps)ITSM: 1 A; (6)Total Power Dissipation @ TA = 25℃ PD: 150 mW; Derate above 25℃: 1.76 mW/℃.
Features
MOC3061 features: (1)Simplifies Logic Control of 115/240 Vac Power; (2)Zero Voltage Crossing; (3)dv/dt of 1500 V/μs Typical, 600 V/μs Guaranteed.

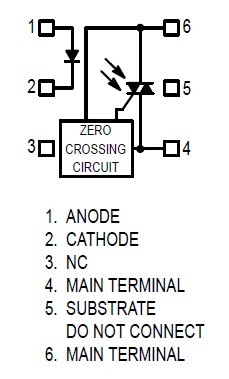

Diagrams
