Product Summary

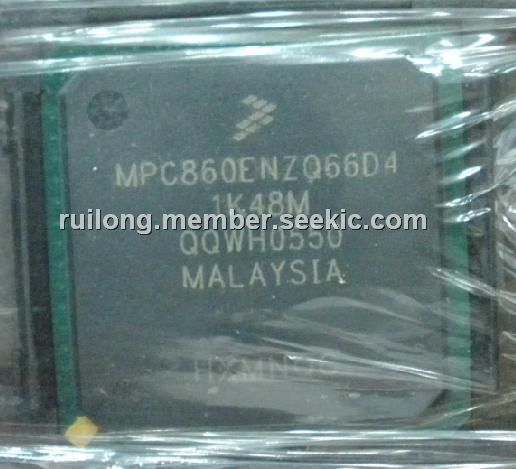

The MPC860ENZQ66D4 Power Quad Integrated Communications Controller (PowerQUIC) is a versatile one-chip integrated microprocessor and peripheral combination designed for a variety of controller applications. MPC860ENZQ66D4 particularly excels in communications and networking systems. The PowerQUICC unit is referred to as the MPC860 in this hardware specification.

Parametrics

MPC860ENZQ66D4 absolute maximum ratings: (1)Supply voltage, VDDH: –0.3 to 4.0V; VDDL: –0.3 to 4.0V; KAPWR: –0.3 to 4.0V; VDDSYN: –0.3 to 4.0V; (2)Input voltage, Vin: GND – 0.3 to VDDH V; (3)Temperature, TA(min): 0℃; (4)Temperature(extended), TA(min): –40℃; Tj(max): 95℃; (5)Storage temperature range, Tstg: –55 to 150℃.

Features

MPC860ENZQ66D4 features: (1)Embedded single-issue, 32-bit PowerPC core (implementing the PowerPC architecture) with thirty-two 32-bit general purpose registers (GPRs); (2)Up to 32-bit data bus (dynamic bus sizing for 8, 16, and 32 bits); (3)32 address lines; (4)Operates at up to 80 MHz; (5)Memory controller (eight banks); (6)10/100 Mbps Ethernet support, fully compliant with the IEEE 802.3u Standard (not available when using ATM over UTOPIA interface); (7)Low power support; (8)3.3-V operation with 5-V TTL compatibility except EXTAL and EXTCLK; (9)357-pin ball grid array (BGA) package.

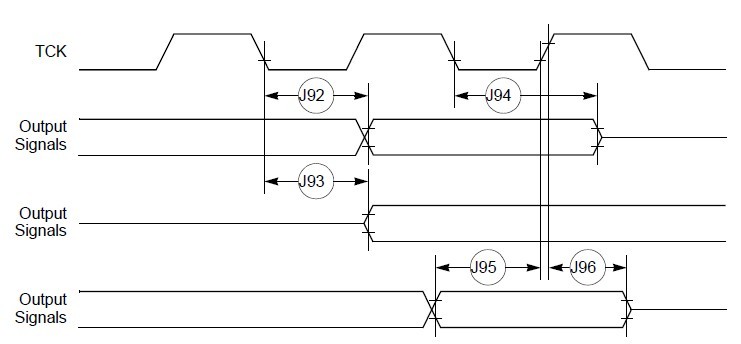

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MPC860ENZQ66D4
MPC860ENZQ66D4
Freescale Semiconductor
Microprocessors (MPU) POWER QUICC
Data Sheet
0-1: $54.82
1-10: $51.71
10-25: $48.79
25-100: $30.49
