Product Summary
The ST7538P is a Half Duplex synchronous/asynchronous FSK Modem designed for power line communication network applications. It operates from a single supply voltage and integrates a line driver and a 5V linear regulator. The device operation is controlled by means of an internal register, programmable through the synchronous serial interface. Additional functions of ST7538P as watchdog, clock output, output voltage and current control, preamble detection, time-out, band in use are included.
Parametrics
ST7538P absolute maxing ratings: (1)PAVCC Power Supply Voltage: -0.3 to +14 V; (2)AVdd Analog Supply Voltage: -0.3 to +5.5 V; (3)DVdd Digital Supply Voltage: -0.3 to +5.5 V; (4)AVss/DVss Voltage between AVss and DVss: -0.3 to +0.3 V; (5)VI Digital input Voltage: DVss - 0.3 to DVdd +0.3 V; (6)VO Digital output Voltage: DVss - 0.3 to DVdd +0.3 V; (7)IO Digital Output Current: -2 to +2 mA; (8)Vsense Voltage Range at Vsense Input: AVss - 0.3 to AVdd+0.3 V.
Features
ST7538P features: (1)Half duplex frequency shift keying(fsk)transceiver; (2)Integrated power line drive with programmable voltage and current control; (3)Programmable interface: synchronous; asynchronous; (4)Single supply voltage(from 7.5 up to 12.5V); (5)Very low power consumption(Iq=5mA); (6)Integrated 5V voltage regulator(up to 100mA)with short circuit protection; (7)8 programmable transmisson frequencies.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

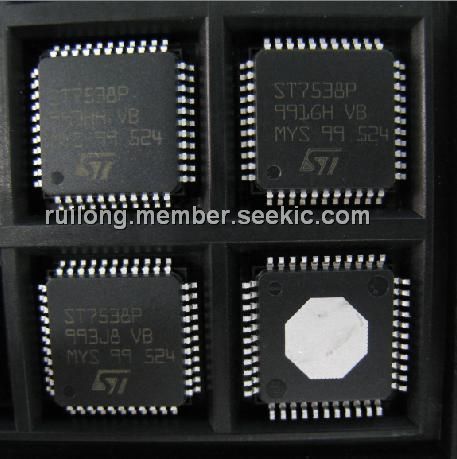

 ST7538P |
STMicroelectronics |
Telecom Line Management ICs 1/2 Duplex FSK Modem |
Data Sheet |
Negotiable |
|
||||
 |
ST7538P013TR |
STMicroelectronics |
Telecom ICs 1/2 Duplex FSK Modem |
Data Sheet |
Negotiable |
|
||||
