Product Summary

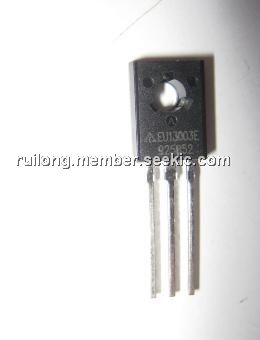

The APT13003EU-E1 is a high voltage, high speed switching NPN Power transistors specially designed for off-line switch mode power supplies with low output power. The APT13003EU-E1 is available in TO-92 and TO-126 packages. The applications of it are Battery Chargers for Mobile Phone of BCD Solution, Power Supply for DVD/STB of BCD Solution.
Parametrics
APT13003EU-E1 absolute maximum ratings: (1)Collector-Emitter Voltage (VBE=0):700 V; (2)Collector-Emitter Voltage (IB=0):465 V; (3)Emitter-Base Voltage (IC=0):9V; (4)Collector Current:1.5 A; (5)Collector Peak Current (Pulse):3A; (6)Base Current:0.75 A; (7)Base Peak Current (Pulse):1.5 A; (8)Power Dissipation, TA=25℃ For TO-92:1.1 W; (9)Power Dissipation, TC=25℃ For TO-126:20 W; (10)Operating Junction Temperature:150℃; (11)Storage Temperature Range:-65℃ to 150℃.
Features
APT13003EU-E1 features: (1)High Switching Speed ; (2)High Collector-Emitter Voltage; (3)Low Cost; (4)Bulk and Ammo Packing TO-92 Package and TO-126 Package.

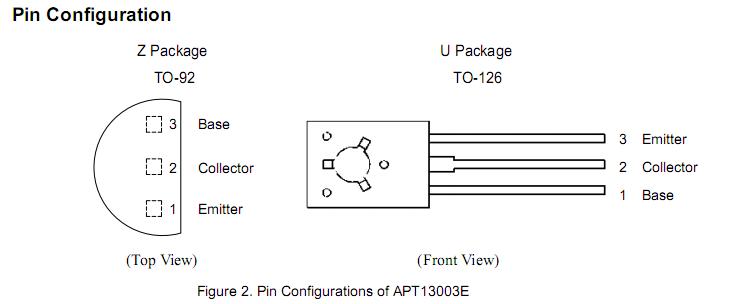

Diagrams
 |
