Product Summary
The TPS76333DBVR low-dropout (LDO) voltage regulator offers the benefits of low-dropout voltage, low-power operation, and miniaturized packaging. The regulator TPS76333DBVR feature low dropout voltages and quiescent currents compared to conventional LDO regulators. Offered in a 5-terminal, small outline integrated-circuit SOT-23 package, the TPS76333DBVR is ideal for cost-sensitive designs and for applications where board space is at a premium. A combination of new circuit design and process innovation has enabled the usual pnp pass transistor to be replaced by a PMOS pass element. Because the PMOS pass element behaves as a low-value resistor, the dropout voltage is very low—typically 300 mV at 150 mA of load current—and is directly proportional to the load current. Since the PMOS pass element is a voltage-driven device, the quiescent current of the TPS76333DBVR is very low (140 μA maximum) and is stable over the entire range of output load current (0 mA to 150 mA). Intended for use in portable systems such as laptops and cellular phones, the low-dropout voltage feature and low-power operation result in a significant increase in system battery operating life.
Parametrics
TPS76333DBVR absolute maximum ratings: (1)Input voltage range: 0.3 V to 10 V; (2)Voltage range at EN: 0.3 V to VI + 0.3 V; (3)Voltage on OUT, FB: 7 V; (4)Peak output current: Internally limited; (5)ESD rating, HBM: 2 kV; (6)Continuous total power dissipation: See Dissipation Rating Tables; (7)Operating junction temperature range, TJ: 40℃ to 150℃; (8)Storage temperature range, Tstg: 65℃ to 150℃.
Features
TPS76333DBVR features: (1)150-mA Low-Dropout Regulator; (2)Dropout Voltage, Typically 300 mV at 150 mA; (3)Thermal Protection; (4)Over Current Limitation; (5)Less Than 2-μA Quiescent Current in Shutdown Mode; (6)-40℃ to 125℃ Operating Junction Temperature Range; (7)5-Pin SOT-23 (DBV) Package.

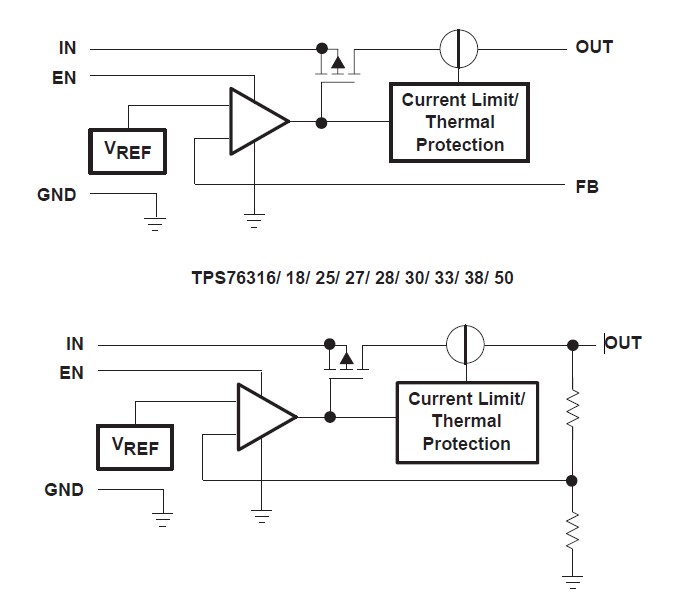

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS76333DBVR |
Texas Instruments |
Low Dropout (LDO) Regulators 3.3V 150mA LDO |
Data Sheet |
|
|
||||||||||||
|
TPS76333DBVRG4 |
Texas Instruments |
Low Dropout (LDO) Regulators Low-Power 150-mA |
Data Sheet |
|
|
||||||||||||
