Product Summary

The 1N5225B is a 500mW epitaxial zener diode.

Parametrics

1N5225B maximum ratings: (1)Power Dissipation: Pd 500 mW; (2)Thermal Resistance, Junction to Ambient Air RθJA: 300 ℃/W; (3)Forward Voltage @ IF = 200mA VF: 1.1 V; (4)Operating and Storage Temperature Range Tj, TSTG: -65 to +200 ℃.

Features

1N5225B features: (1)500mW Power Dissipation; (2)High Stability; (3)Surface Mount Equivalents Available; (4)Hermetic Package; (5)VZ - Tolerance ±5%; (6)Lead Free Finish, RoHS Compliant.

Diagrams

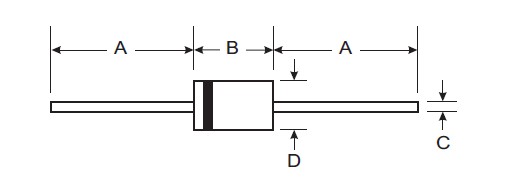

1N5225B pinout
