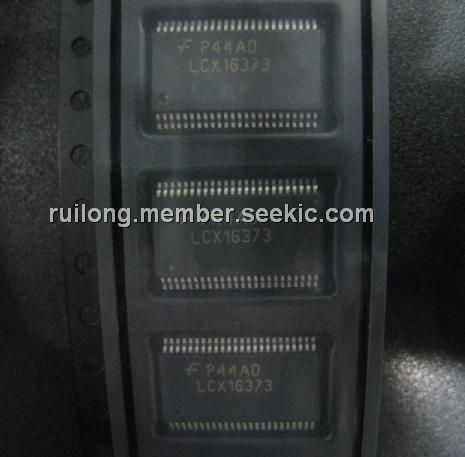

74LCX16373MTDX

Low Voltage, 16-Bit Transparent Latch, 5V Tolerant Input and Output, TSSOP48

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.46~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.46~1.00

PartNumber:: 74LCX16373MTDX

Brand:: Fairchild Semiconductor - Fairchild | Pack: TSSOP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Berry's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-11

From Other Seller

Part Number:74LCX16373MTDX
US $0.46 - 1.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 74LCX16373MTDX contains sixteen non-inverting latches with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. The flip-flops of the 74LCX16373MTDX appear transparent to the data when the Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the setup time is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the outputs are in a high impedance state. The 74LCX16373MTDX is designed for low voltage (2.5V or 3.3V) VCC applications with capability of interfacing to a 5V signal environment. The 74LCX16373MTDX is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

Parametrics

74LCX16373MTDX absolute maximum ratings: (1)VCC Supply Voltage: -0.5 to +7.0 V; (2)VI DC Input Voltage: -0.5 to +7.0 V; (3)VO DC Output Voltage: -0.5 to +7.0V Output in 3-STATE; (4)-0.5 to VCC + 0.5 Output in HIGH or LOW State; (5)IIK DC Input Diode Current -50 VI < GND mA; (6)IOK DC Output Diode Current: -50 mA VO < GND; +50 VO ! VCC; (7)IO DC Output Source/Sink Current: ±50 mA; (8)ICC DC Supply Current per Supply Pin: ±100 mA; (9)IGND DC Ground Current per Ground Pin: ±100 mA; (10)TSTG Storage Temperature: -65 to +150 ℃.

Features

74LCX16373MTDX features: (1)5V tolerant inputs and outputs; (2)2.3V–3.6V VCC specifications provided; (3)5.4 ns tPD max (VCC 3.3V), 20 PA ICC max; (4)Power down high impedance inputs and outputs; (5)Supports live insertion/withdrawal (Note 1); (6)r24 mA output drive (VCC 3.0V); (7)Uses patented noise/EMI reduction circuitry; (8)Latch-up performance exceeds 500 mA.
