Product Summary
The 2W04M is a Single Phase 2.0 AMPS. Silicon Bridge Rectifier.
Parametrics
2W04M absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:400V; (2)Maximum RMS Voltage:280V; (3)Maximum DC Blocking Voltage:400V ; (4)Maximum Average Forward Rectified Current @TA = 50℃:2.0A; (5)Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method ):50A; (6)Maximum Instantaneous Forward Voltage @ 2.0A:1.1V; (7)Maximum DC Reverse Current @ TA=25℃:10μA; (8)at Rated DC Blocking Voltage @ TA=100℃:500μA; (9)Typical Thermal Resistance:40℃/W or 15℃/W; (10)Operating Temperature Range:-55℃ to +125℃; (11)Storage Temperature Range:-55℃ to +150℃.
Features
2W04M features: (1)UL Recognized File # E-96005 ; (2)Surge overload ratings to 50 amperes peak ; (3)Ideal for printed circuit board ; (4)Reliable low cost construction technique results in inexpensive product ; (5)High temperature soldering guaranteed: 260℃ / 10 seconds / 0.375” ( 9.5mm ); (6)lead length at 5 lbs., ( 2.3 kg ) tension.

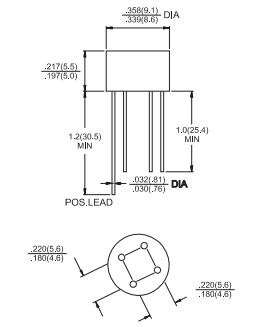

Diagrams
