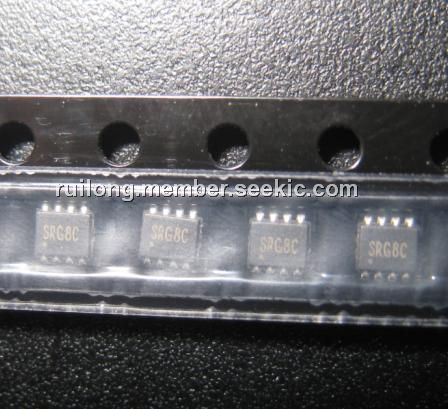

AAT1110IJS-0.6-T1

step-down converter, SC70JW-8, 800mA, 1.4MHz Switching Frequency, Fast Load Transient

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.40~1.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.40~1.80

PartNumber:: AAT1110IJS-0.6-T1

Brand:: Advanced Analog Technology, Inc. - AAT | Pack: SC | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Berry's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-17

From Other Seller

Part Number:AAT1110IJS-0.6-T1
US $1.40 - 1.80
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AAT1110IJS-0.6-T1 is a 1.4MHz step-down converter with an input voltage range of 2.7V to 5.5V and output as low as 0.6V. Its low supply current, small size, and high switching frequency make the AAT1110IJS-0.6-T1 the ideal choice for portable applications. The AAT1110IJS-0.6-T1 is available in either a fixed version with internal feedback or a programmable version with external feedback resistors. It can deliver up to 800mA of load current while maintaining a low 27µA no load quiescent current. The AAT1110IJS-0.6-T1 is designed to maintain high efficiency throughout the operating range and provides fast turn-on time. It is available in a space-saving 2.0x2.1mm SC70JW-8 package and is rated over the -40℃ to +85℃ temperature range. The applications of it are Cellular Phones, Digital Cameras, Handheld Instruments, Microprocessor / DSP Core / IO Power, PDAs and Handheld Computers, USB Devices.

Parametrics

AAT1110IJS-0.6-T1 absolute maximum ratings: (1)Input Voltage to GND:6.0V; (2)LX to GND:-0.3V to VIN+0.3V; (3)OUT to GND:-0.3V to VIN+0.3V; (4)EN to GND:-0.3V to 6.0V; (5)Operating Junction Temperature Range:-40℃ to 150℃; (6)Maximum Soldering Temperature (at leads, 10 sec):300℃.

Features

AAT1110IJS-0.6-T1 features: (1)VIN Range: 2.7V to 5.5V; (2)VOUT Fixed or Adjustable from 0.6V to VIN; (3)27μA No Load Quiescent Current; (4)Output Current Up to 800mA; (5)1.4MHz Switching Frequency; (6)120μs Soft Start; (7)Fast Load Transient; (8)Over-Temperature Protection; (9)Current Limit Protection; (10)100% Duty Cycle Low-Dropout Operation; (11)<1μA of Shutdown Current; (12)SC70JW-8 Package; (13)Temperature Range: -40℃ to +85℃.
