Product Summary
The ADM708SARZ-REEL is a microprocessor supervisory circuit. It is suitable for monitoring either 3 V or 3.3 V power supplies. The ADM708SARZ-REEL provides power-supply monitoring circuitry that generate a reset output during power-up, power-down, and brownout conditions. The reset output remains operational with VCC as low as 1 V. Independent watchdog monitoring circuitry is also provided. The device is available in narrow 8-lead PDIP and 8-lead SOIC packages. The applications of the ADM708SARZ-REEL are Microprocessor systems, Computers, Controllers, Intelligent instruments, Critical microprocessor monitoring, Battery-operated systems, Portable instruments.
Parametrics
ADM708SARZ-REEL absolute maximum ratings: (1)VCC:-0.3 V to +6 V; (2)All Other Inputs:-0.3 V to VCC + 0.3 V; (3)Input Current: VCC:20 mA, GND:20 mA; (4)Digital Output Current:20 mA; (5)Power Dissipation, R-8 (SOIC):470 mW,θJA Thermal Impedance:110℃/W; (6)Operating Temperature Range: Industrial (Version A):-40℃ to +85℃; (7)Lead Temperature (Soldering, 10 sec):300℃, Vapor Phase (60 sec):215℃, Infrared (15 sec):220℃; (8)Storage Temperature Range:-65℃ to +150℃; (9)ESD Rating >4.5 kV.
Features
ADM708SARZ-REEL features: (1)Precision supply voltage monitor:2.93 V; (2)100 μA quiescent current; (3)200 ms reset pulse width; (4)Debounced manual reset input (MR); (5)Reset output:Both active high and active low; (6)Voltage monitor for power-fail or low battery warning; (7)Guaranteed RESET valid with VCC = 1 V; (8)Superior upgrade for MAX706P/R/S/T, MAX708R/S/T.

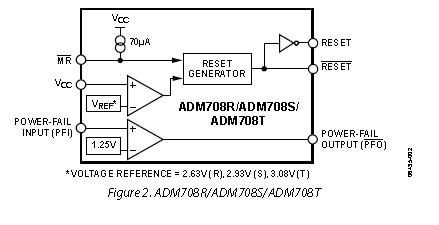

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

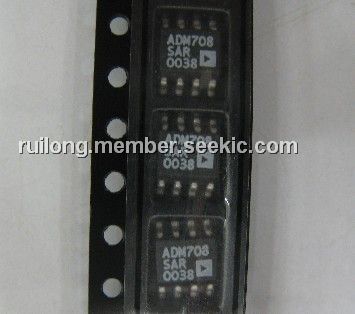

ADM708SARZ-REEL |
IC SUPERVISOR MPU 2.93V WD 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||||
ADM706RANZ |
IC SUPERVISOR MPU 2.63V WD 8DIP |
Data Sheet |
|
|
||||||||||||||||||||||
ADM706RAR |
IC SUPERVISOR MPU 2.63V WD 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||||
ADM705AR-REEL7 |
IC SUPERVISOR MPU 4.65V WD 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||||
ADM705ARZ |
IC SUPERVISOR MPU 4.65 WD 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||||
ADM708SARZ |
IC SUPERVISOR MPU 2.93 WD 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||||
ADM708SARZ-REEL |
IC SUPERVISOR MPU 2.93V WD 8SOIC |
Data Sheet |
|
|
