Product Summary
The AT88SC0104CA-SU is a high-performance secure memory providing 1 Kbit of user memory with advanced security and cryptographic features built in. The user memory of the AT88SC0104CA-SU is divided into four 32-byte zones, each of which may be individually set with different security access rights or effectively combined together to provide space for 1 to 4 data files. The AT88SC0104CA-SU features an enhanced command set that allows direct communication with microcontroller hardware 2-Wire interface thereby allowing for faster firmware development with reduced code space requirements.
Parametrics
AT88SC0104CA-SU absolute maximum ratings: (1)Operating Temperature: -40 to +85℃; (2)Storage Temperature: -65 to + 150℃; (3)Voltage on Any Pin with Respect to Ground: 0.7 to VCC +0.7V; (4)Maximum Operating Voltage: 4.0V; (5)DC Output Current: 5.0 mA.
Features
AT88SC0104CA-SU features: (1)64-bit Mutual Authentication Protocol (Under License of ELVA); (2)Cryptographic Message Authentication Codes (MAC); (3)Stream Encryption; (4)Four Key Sets for Authentication and Encryption; (5)Eight Sets of Two 24-bit Passwords; (6)Anti-Tearing Function; (7)Voltage and Frequency Monitors; (8)ISO 7816 Class B (3V) Operation; (9)ISO 7816-3 Asynchronous T=0 Protocol (Gemplus. Patent); (10)Multiple Zones, Key Sets and Passwords for Multi-application Use; (11)Synchronous 2-wire Serial Interface for Faster Device Initialization; (12)Programmable 8-byte Answer-To-Reset Register; (13)ISO 7816-2 Compliant Modules.

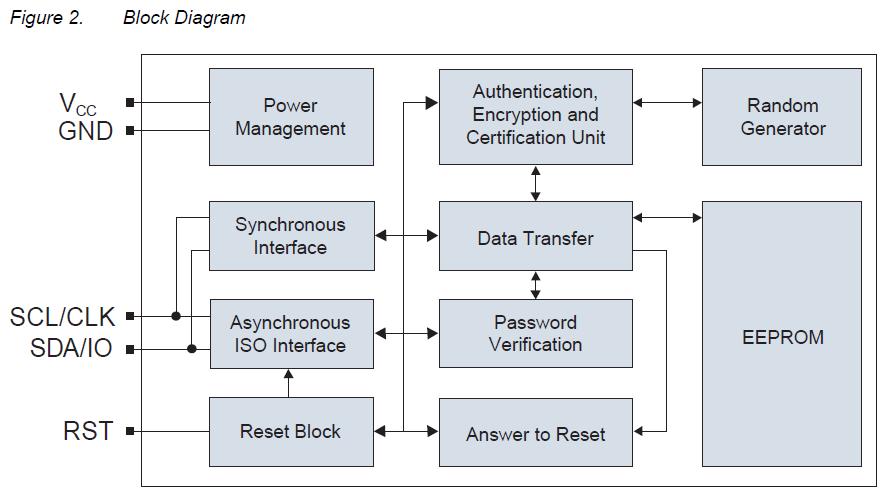

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT88SC0104CA-SU |
Atmel |
EEPROM Ind Temp Green |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
AT880 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
AT88CK101BK3 |
Atmel |
Security / Authentication Development Tools CryptoAuth Dev Brd w/one SOT23-3 SKT |
Data Sheet |
|
|
||||||||||||
|
AT88CK101BK8 |
Atmel |
Security / Authentication Development Tools CryptoAuth Brd Kit w/one SOIC SKT |
Data Sheet |
|
|
||||||||||||
 |
AT88CK101STK3 |
Atmel |
Security / Authentication Development Tools CryptoAuth Kit w/one SOT23-3 w/micro |
Data Sheet |
|
|
||||||||||||
 |
AT88CK101STK8 |
Atmel |
Security / Authentication Development Tools Crypto Auth kit w/1 SOIC w/micro |
Data Sheet |
|
|
||||||||||||
|
AT88CK109BK3 |
Atmel |
Security / Authentication Development Tools CryptoAuth Dev Kit w/o Mbase 2-SOT23-3 |
Data Sheet |
|
|
||||||||||||
