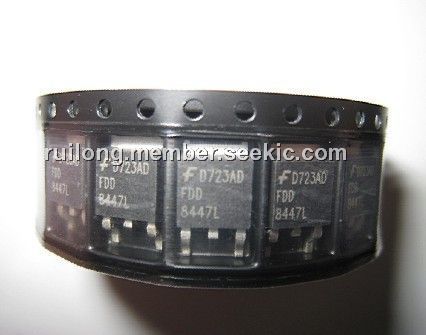

Product Summary
The FDD8447L is a 40V N-channel PowerTrench MOSFET. It has been produced using the proprietary PowerTrench technology of Fairchild Semiconductor to deliver low rDS(on) and optimized BVDSS capability to offer superior performance benefit in the application. The applications of the FDD8447L include: Inverter, Power Supplies.
Parametrics
FDD8447L absolute maxing ratings: (1)VDS Drain to Source Voltage: 40 V; (2)VGS Gate to Source Voltage: ±20 V; (3)ID Drain Current -Continuous (Package limited) TC= 25℃: 50A; Continuous (Silicon limited) TC= 25℃: 57A; Continuous TA= 25℃: 15.2A; Pulsed: 100A; (4)IS Max Pulse Diode Current: 100A; (5)EAS Drain-Source Avalanche Energy: 153mJ; (6)PD Power Dissipation TC= 25℃: 44W; TA= 25℃: 3.1W; TA= 25℃: 1.3W; (7)TJ, TSTG Operating and Storage Junction Temperature Range: -55 to +150℃.
Features
FDD8447L features: (1)Max rDS(on) = 8.5mΩ at VGS = 10V, ID = 14A; (2)Max rDS(on) = 11.0mΩ at VGS = 4.5V, ID = 11A; (3)Fast Switching; (4)RoHS Compliant.

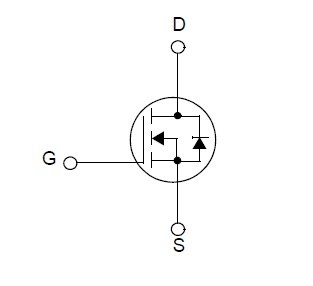

Diagrams
