Product Summary
The DM74LS150N is a data selector/multiplexer. It contains full on-chip decoding to select the desired data source. The device selects one-of-eight data sources. The DM74LS150N has a strobe input which must be at a low logic level to enable this device. A high level at the strobe forces the W output high, and the Y output low.
Parametrics
DM74LS150N absolute maxing ratings: (1)Supply Voltage: 7V; (2)Input Voltage: 7V; (3)Operating Free Air Temperature Range: 0℃ to +70℃; (4)Storage Temperature Range: -65℃ to +150℃.
Features
DM74LS150N features: (1)Select one-of-eight data lines; (2)Performs parallel-to-serial conversion; (3)Permits multiplexing from N lines to one line; (4)Also for use as Boolean function generator; (5)Typical average propagation delay time data input to W output 12.5 ns; (6)Typical power dissipation 30 mW; (7)Alternate Military/Aerospace device (54LS151) is available. Contact a National Semiconductor Sales Office/Distributor for specifications.

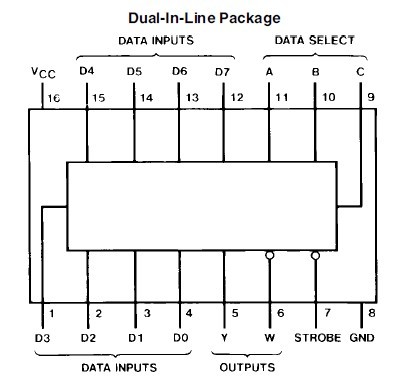

Diagrams
![]() |
