Product Summary

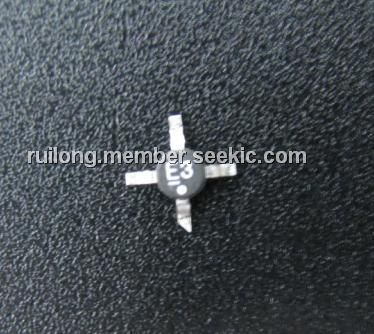

The ERA-3SM is a monolithic amplifier.

Parametrics

ERA-3SM absolute maxing ratings: (1)operating temperature: -45℃ to 85℃; (2)storage temperature: -65℃ to 150℃.

Features

ERA-3SM features: (1)low thermal resistance; (2)miniature microwave amplifier; (3)frequency range, DC to 8 GHz, usable to 10 GHz; (4)up to 18.4 dBm typ. (16.5 dBm min) output power.

Diagrams
