Product Summary

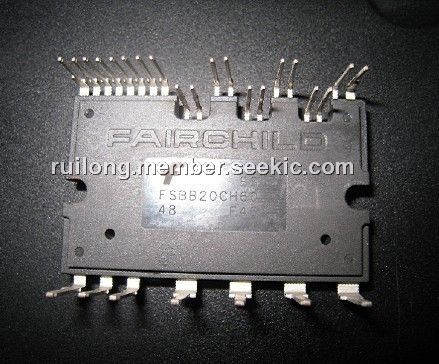

The FSBB20CH60 is an advanced smart power module (SPMTM) that Fairchild has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting low power inverter-driven application like air conditioner and washing machine. It combines optimized circuit protection and drive matched to low-loss IGBTs. The applications of the FSBB20CH60 include: (1)AC 100V ~ 253V three-phase inverter drive for small power ac motor drives; (2)Home appliances applications like air conditioner and washing machine.

Parametrics

FSBB20CH60 absolute maxing ratings: (1)On the conditions of Applied between P- NU, NV, NW, VPN Supply Voltage: 450V; (2)On the conditions of Applied between P- NU, NV, NW, VPN(Surge) Supply Voltage (Surge): 500V; (3)VCES Collector-emitter Voltage: 600V; (4)On the condition of TC = 25℃, ±IC Each IGBT Collector Current: 20A; (5)On the conditions of TC = 25℃, Under 1ms Pulse Width, ±ICP Each IGBT Collector Current(Peak): 40A; (6)On the condition of TC = 25℃ per One Chip, PC Collector Dissipation: 61W; (7)TJ Operating Junction Temperature: -20 ~ 125℃.

Features

FSBB20CH60 features: (1)UL Certified No.E209204(SPM27-CA package); (2)Very low thermal resistance due to using DBC; (3)600V-20A 3-phase IGBT inverter bridge including control ICs for gate driving and protection; (4)Divided negative dc-link terminals for inverter current sensing applications; (5)Single-grounded power supply due to built-in HVIC; (6)Isolation rating of 2500Vrms/min.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FSBB20CH60
FSBB20CH60
Fairchild Semiconductor
IGBT Modules HIGH_POWER
Data Sheet
0-36: $13.40
36-100: $12.44
100-250: $11.42
250-500: $10.87
FSBB20CH60B
FSBB20CH60B
Fairchild Semiconductor
IGBT Modules 600V -20A 3-phase
Data Sheet
Negotiable
FSBB20CH60CT
FSBB20CH60CT
Fairchild Semiconductor
IGBT Modules 600V 20A SPM
Data Sheet
0-1: $11.63
1-25: $9.78
25-100: $9.00
100-250: $8.20
FSBB20CH60CL
FSBB20CH60CL
Fairchild Semiconductor
IGBT Modules 20A, Motion-SPM
Data Sheet
0-1: $12.77
1-25: $10.73
25-100: $9.88
100-250: $9.01
FSBB20CH60C
FSBB20CH60C
Fairchild Semiconductor
IGBT Modules 600V 20A SPM
Data Sheet
0-1: $13.93
1-25: $12.88
25-100: $11.00
100-250: $10.09
FSBB20CH60BT
FSBB20CH60BT
Fairchild Semiconductor
IGBT Modules 600V -20A 3-phase
Data Sheet
Negotiable
FSBB20CH60F
FSBB20CH60F
Fairchild Semiconductor
IGBT Modules HIGH VOLTAGE
Data Sheet
0-1: $13.31
1-2: $12.31
2-10: $10.51
10-20: $9.65
FSBB20CH60SL
FSBB20CH60SL
Fairchild Semiconductor
IGBT Modules 600V/20A Smart Power
Data Sheet
0-36: $12.58
36-100: $11.69
100-250: $10.72
250-500: $10.21
